package loading
library(tidyverse)
library(kableExtra)
library(broom)
library(RColorBrewer)
library("TxDb.Hsapiens.UCSC.hg38.knownGene")
library("org.Hs.eg.db")
library(rtracklayer)
library(ggfortify)
library(readr)
library(BiocGenerics)
library(gridExtra)
library(scales)
library(BiocParallel)
library(ggpubr)
# library(edgeR)
library(genomation)
library(ggsignif)
library(plyranges)
library(ggrepel)
library(ComplexHeatmap)
library(cowplot)
library(smplot2)
library(readxl)
library(circlize)

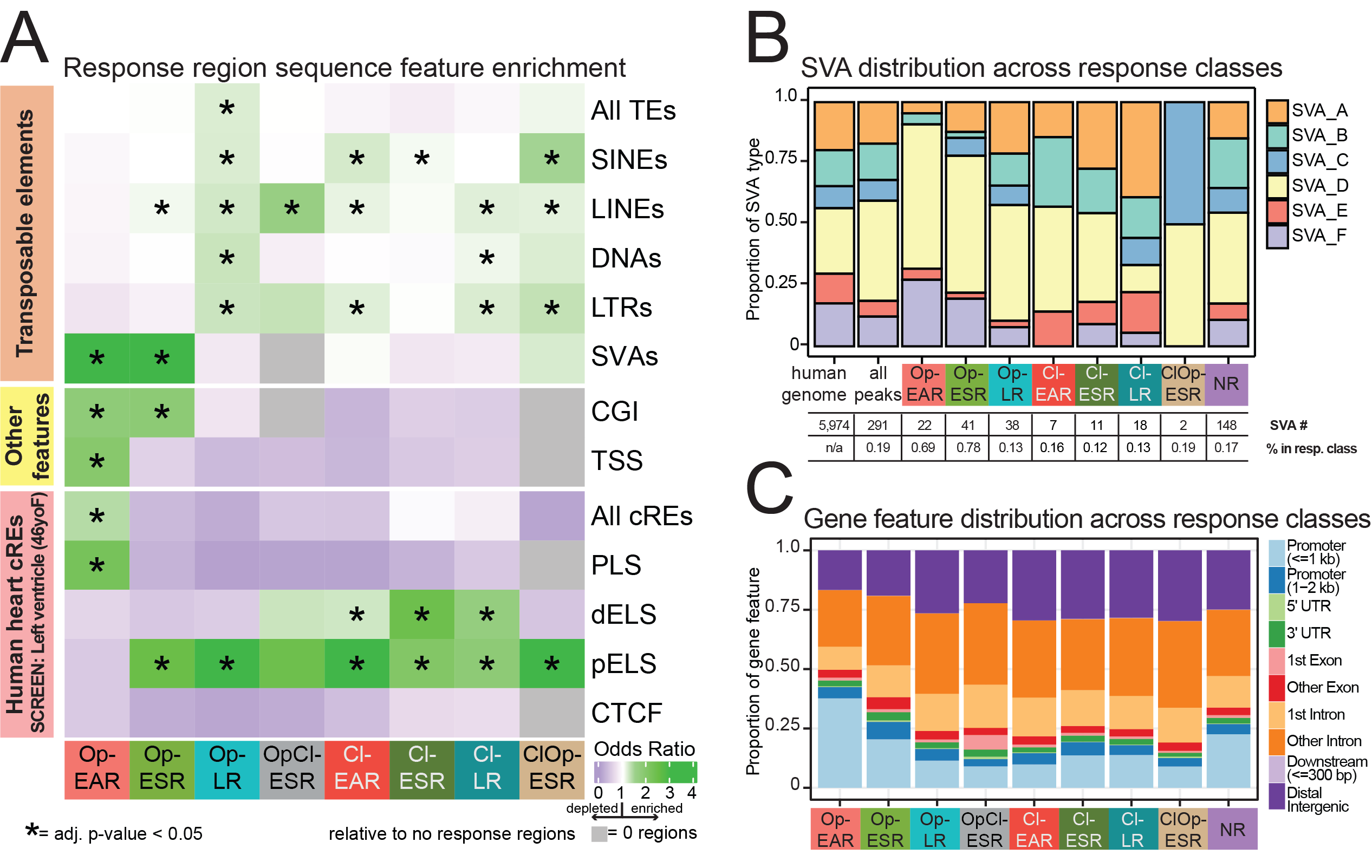

library(epitools)Figure 2
knitr::include_graphics("assets/Figure\ 2.png", error=FALSE)
| Version | Author | Date |
|---|---|---|
| 50f3de9 | E. Renee Matthews | 2025-02-21 |
knitr::include_graphics("docs/assets/Figure\ 2.png",error = FALSE)
Figure 2.A. Transposable elements:
repeatmasker
repeatmasker <- read.delim("data/other_papers/repeatmasker.tsv")# TSS_NG_data <- read_delim("data/Final_four_data/TSS_assigned_NG.txt",
# delim = "\t", escape_double = FALSE,
# trim_ws = TRUE)
Collapsed_peaks <- read_delim("data/Final_four_data/collapsed_new_peaks.txt",
delim = "\t",
escape_double = FALSE,
trim_ws = TRUE)
reClass_list <- repeatmasker %>%
distinct(repClass)
Line_repeats <- repeatmasker %>%
dplyr::filter(repClass == "LINE") %>%
makeGRangesFromDataFrame(., keep.extra.columns = TRUE, seqnames.field = "genoName", start.field = "genoStart", end.field = "genoEnd",starts.in.df.are.0based=TRUE)
Sine_repeats <- repeatmasker %>%
dplyr::filter(repClass == "SINE") %>%
makeGRangesFromDataFrame(., keep.extra.columns = TRUE, seqnames.field = "genoName", start.field = "genoStart", end.field = "genoEnd",starts.in.df.are.0based=TRUE)
LTR_repeats <- repeatmasker %>%
dplyr::filter(repClass == "LTR") %>%
makeGRangesFromDataFrame(., keep.extra.columns = TRUE, seqnames.field = "genoName", start.field = "genoStart", end.field = "genoEnd",starts.in.df.are.0based=TRUE)
DNA_repeats <- repeatmasker %>%
dplyr::filter(repClass == "DNA") %>%
makeGRangesFromDataFrame(., keep.extra.columns = TRUE, seqnames.field = "genoName", start.field = "genoStart", end.field = "genoEnd",starts.in.df.are.0based=TRUE)
retroposon_repeats <- repeatmasker %>%
dplyr::filter(repClass == "Retroposon") %>%
makeGRangesFromDataFrame(., keep.extra.columns = TRUE, seqnames.field = "genoName", start.field = "genoStart", end.field = "genoEnd",starts.in.df.are.0based=TRUE)
all_TEs_gr <- repeatmasker %>%
makeGRangesFromDataFrame(., keep.extra.columns = TRUE, seqnames.field = "genoName", start.field = "genoStart", end.field = "genoEnd",starts.in.df.are.0based=TRUE)
Nine_group_list <- readRDS("data/Final_four_data/Nine_group_list.RDS")
list2env(Nine_group_list, envir = .GlobalEnv)<environment: R_GlobalEnv>peakAnnoList_ff_motif <- readRDS("data/Final_four_data/peakAnnoList_ff_motif.RDS")
background_peaks <- as.data.frame(peakAnnoList_ff_motif$background)
Col_TSS_data_gr <- Collapsed_peaks %>%
dplyr::filter(chr != "chrY") %>%
dplyr::filter(Peakid %in% background_peaks$Peakid) %>%
GRanges()
all_TEs_gr$TE_width <- width(all_TEs_gr)
Col_TSS_data_gr$peak_width <- width(Col_TSS_data_gr)
Col_fullDF_overlap <- join_overlap_intersect(Col_TSS_data_gr,all_TEs_gr)
cpgislands_df <- read.delim("data/other_papers/cpg_islands.tsv")
cpg_island_gr <- cpgislands_df %>%
makeGRangesFromDataFrame(., keep.extra.columns = TRUE, seqnames.field = "chrom", start.field = "chromStart", end.field = "chromEnd",starts.in.df.are.0based=TRUE)
Col_TSS_data_gr$peak_width <- width(Col_TSS_data_gr)
cpg_island_gr$cpg_width <- width(cpg_island_gr)
txdb <- TxDb.Hsapiens.UCSC.hg38.knownGene
transcripts <- transcripts(txdb)
tss <- resize(transcripts, width = 1, fix = "start")
overlaps <- findOverlaps(Col_TSS_data_gr,tss)
overlapping_regions <- Col_TSS_data_gr[queryHits(overlaps)]
TSS_overlap_list <- overlapping_regions %>% as.data.frame() %>%
distinct(Peakid)
Col_fullDF_cug_overlap <- join_overlap_intersect(Col_TSS_data_gr,cpg_island_gr)
Col_fullDF_cug_overlap <-Col_fullDF_cug_overlap %>%
as.data.frame %>%
mutate(per_ol=width/cpg_width)Nine_te_df <-
Col_TSS_data_gr %>%
as.data.frame %>%
distinct(Peakid) %>%
left_join(.,(Col_fullDF_overlap %>% as.data.frame)) %>%
dplyr::select(Peakid, repName:repFamily,TE_width,width) %>%
mutate(mrc = case_when(
Peakid %in% EAR_open$Peakid ~ "EAR_open",
Peakid %in% EAR_close$Peakid ~ "EAR_close",
Peakid %in% ESR_open$Peakid ~ "ESR_open",
Peakid %in% ESR_close$Peakid ~ "ESR_close",
Peakid %in% ESR_opcl$Peakid ~ "ESR_opcl",
Peakid %in% LR_open$Peakid ~ "LR_open",
Peakid %in% LR_close$Peakid ~ "LR_close",
Peakid %in% NR$Peakid ~ "NR",
Peakid %in% ESR_clop$Peakid ~ "ESR_clop",
TRUE ~ "not_mrc"
)) %>%
mutate(per_ol= width/TE_width) %>%
mutate(TEstatus=if_else(is.na(repClass),"not_TE_peak","TE_peak")) %>%
mutate(repClass_org=repClass) %>%
mutate(repClass=factor(repClass)) %>%
mutate(repClass=if_else(repClass_org=="LINE", repClass_org,
if_else(repClass_org=="SINE",repClass_org,
if_else(repClass_org=="LTR", repClass_org,
if_else(repClass_org=="DNA", repClass_org,
if_else(repClass_org=="Retroposon",repClass_org,"Other")))))) %>%
mutate(Sine_status = if_else(is.na(repClass),"not_sine",
if_else(repClass=="SINE","sine_peak", "not_sine"))) %>%
mutate(Line_status = if_else(is.na(repClass),"not_line",
if_else(repClass=="LINE","line_peak", "not_line"))) %>%
mutate(LTR_status = if_else(is.na(repClass),"not_LTR",
if_else(repClass=="LTR","LTR_peak", "not_LTR"))) %>%
mutate(DNA_status = if_else(is.na(repClass),"not_DNA",
if_else(repClass=="DNA","DNA_peak", "not_DNA"))) %>%
mutate(Retro_status = if_else(is.na(repClass)&is.na(per_ol),"not_Retro",
if_else(repClass=="Retroposon","Retro_peak", "not_Retro"))) %>%
mutate(TEstatus=factor(TEstatus, levels = c("TE_peak","not_TE_peak")))%>%
mutate(Sine_status=factor(Sine_status, levels = c("sine_peak","not_sine")),
Line_status=factor(Line_status, levels =c("line_peak","not_line")),
LTR_status=factor(LTR_status, levels =c("LTR_peak","not_LTR")),
DNA_status=factor(DNA_status, levels =c("DNA_peak","not_DNA")),
Retro_status=factor(Retro_status, levels =c("Retro_peak","not_Retro")))
CUG_mrc_nine_list <-
Col_TSS_data_gr%>% as.data.frame() %>%
left_join(., (Col_fullDF_cug_overlap %>%
as.data.frame(.)), by=c("seqnames"="seqnames", "start"="start", "end"="end", "Peakid"="Peakid", "NCBI_gene"="NCBI_gene", "dist_to_NG"="dist_to_NG", "SYMBOL" = "SYMBOL", "peak_width"="peak_width")) %>%
dplyr::select(Peakid, name,cpgNum:per_ol) %>%
mutate(cugstatus=if_else(is.na(cpgNum),"not_CGi_peak","CGi_peak")) %>%
mutate(mrc = case_when(
Peakid %in% EAR_open$Peakid ~ "EAR_open",
Peakid %in% EAR_close$Peakid ~ "EAR_close",
Peakid %in% ESR_open$Peakid ~ "ESR_open",
Peakid %in% ESR_close$Peakid ~ "ESR_close",
Peakid %in% ESR_opcl$Peakid ~ "ESR_opcl",
Peakid %in% LR_open$Peakid ~ "LR_open",
Peakid %in% LR_close$Peakid ~ "LR_close",
Peakid %in% NR$Peakid ~ "NR",
Peakid %in% ESR_clop$Peakid ~ "ESR_clop",
TRUE ~ "not_mrc"
)) %>%
distinct()making contingency matrices ##### contingency matrices for TE/TSS/CGI
TE_mat<- Nine_te_df %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(TEstatus, mrc) %>%
tally %>%
pivot_wider(id_cols = mrc, names_from = TEstatus,values_from = n) %>%
column_to_rownames("mrc") %>%
as.matrix(.)
Sine_mat<- Nine_te_df %>%
dplyr::filter(mrc != "not_mrc") %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
group_by(Sine_status, mrc) %>%
tally %>%
pivot_wider(id_cols = mrc, names_from = Sine_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
Line_mat<- Nine_te_df %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(Line_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = Line_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
LTR_mat<- Nine_te_df %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(LTR_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = LTR_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
Retro_mat<- Nine_te_df %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(Retro_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = Retro_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
DNA_mat<- Nine_te_df %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(DNA_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = DNA_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
CUG_mat <- CUG_mrc_nine_list %>%
distinct(Peakid,.keep_all = TRUE) %>%
dplyr::filter(mrc != "not_mrc") %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
group_by(cugstatus, mrc) %>%
tally %>%
pivot_wider(id_cols = mrc, names_from = cugstatus,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit() %>%
as.matrix(.)
TSS_mat <-Col_TSS_data_gr %>%
as.data.frame() %>%
dplyr::select(Peakid) %>%
mutate(TSS_status= if_else(Peakid %in% TSS_overlap_list$Peakid,"TSS_peak","not_TSS_peak")) %>%
mutate(mrc = case_when(
Peakid %in% EAR_open$Peakid ~ "EAR_open",
Peakid %in% EAR_close$Peakid ~ "EAR_close",
Peakid %in% ESR_open$Peakid ~ "ESR_open",
Peakid %in% ESR_close$Peakid ~ "ESR_close",
Peakid %in% ESR_opcl$Peakid ~ "ESR_opcl",
Peakid %in% LR_open$Peakid ~ "LR_open",
Peakid %in% LR_close$Peakid ~ "LR_close",
Peakid %in% NR$Peakid ~ "NR",
Peakid %in% ESR_clop$Peakid ~ "ESR_clop",
TRUE ~ "not_mrc"
)) %>%
group_by(TSS_status, mrc) %>%
dplyr::filter(mrc !="not_mrc") %>%
tally %>%
pivot_wider(id_cols = mrc, names_from = TSS_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)odds ratio TE/TSS/CGI
matrix_list <- list("TE"=TE_mat, "Sines"=Sine_mat, "Lines"=Line_mat,"DNA"= DNA_mat,"Retro"= Retro_mat,"LTR"= LTR_mat,"CGI"=CUG_mat,"TSS"=TSS_mat)
results_or <- data.frame(Matrix_Name = character(),
Row_Compared = character(),
Odds_Ratio = numeric(),
Lower_CI = numeric(),
Upper_CI = numeric(),
P_Value = numeric(),
stringsAsFactors = FALSE)
# Loop through each matrix in the list
for (matrix_name in names(matrix_list)) {
current_matrix <- matrix_list[[matrix_name]]
n_rows <- nrow(current_matrix)
# Loop through each row of the current matrix (except the last row)
for (i in 1:(n_rows - 1)) {
# Perform odds ratio test between row i and the last row using epitools
test_result <- tryCatch({
contingency_table <- rbind(current_matrix[i, ], current_matrix[n_rows, ])
# Check if any row in the contingency table contains only zeros
if (any(rowSums(contingency_table) == 0)) {
stop("Contingency table contains empty rows.")
}
oddsratio_result <- oddsratio(contingency_table)
# Ensure the oddsratio result has at least 2 rows
if (nrow(oddsratio_result$measure) < 2) {
stop("oddsratio result does not have enough data.")
}
list(oddsratio = oddsratio_result, p.value = oddsratio_result$p.value[2,"chi.square"])
}, error = function(e) {
cat("Error in odds ratio test for row", i, "in matrix", matrix_name, ":", e$message, "\n")
return(NULL)
})
# Only store the result if test_result is valid (i.e., not NULL)
if (!is.null(test_result)) {
or_value <- test_result$oddsratio$measure[2, "estimate"]
lower_ci <- test_result$oddsratio$measure[2, "lower"]
upper_ci <- test_result$oddsratio$measure[2, "upper"]
p_value <- test_result$oddsratio$p.value[2,"chi.square"]
# Check if the values are numeric and valid (not NA)
if (!is.na(or_value) && !is.na(lower_ci) && !is.na(upper_ci) && !is.na(p_value)) {
# Store the results in the dataframe
results_or <- rbind(results_or, data.frame(Matrix_Name = matrix_name,
Row_Compared = rownames(current_matrix)[i],
Odds_Ratio = or_value,
Lower_CI = lower_ci,
Upper_CI = upper_ci,
P_Value = p_value))
}
}
}
}
results_or <- results_or %>%
mutate(Matrix_Name=factor(Matrix_Name, levels=c("TE","Sines","Lines", "DNA","LTR","Retro","CGI","TSS"))) %>%
mutate(Row_Compared=factor(Row_Compared, levels = c("EAR_open","ESR_open", "LR_open","ESR_opcl", "EAR_close", "ESR_close", "LR_close", "ESR_clop"))) %>%
arrange(Matrix_Name,Row_Compared)

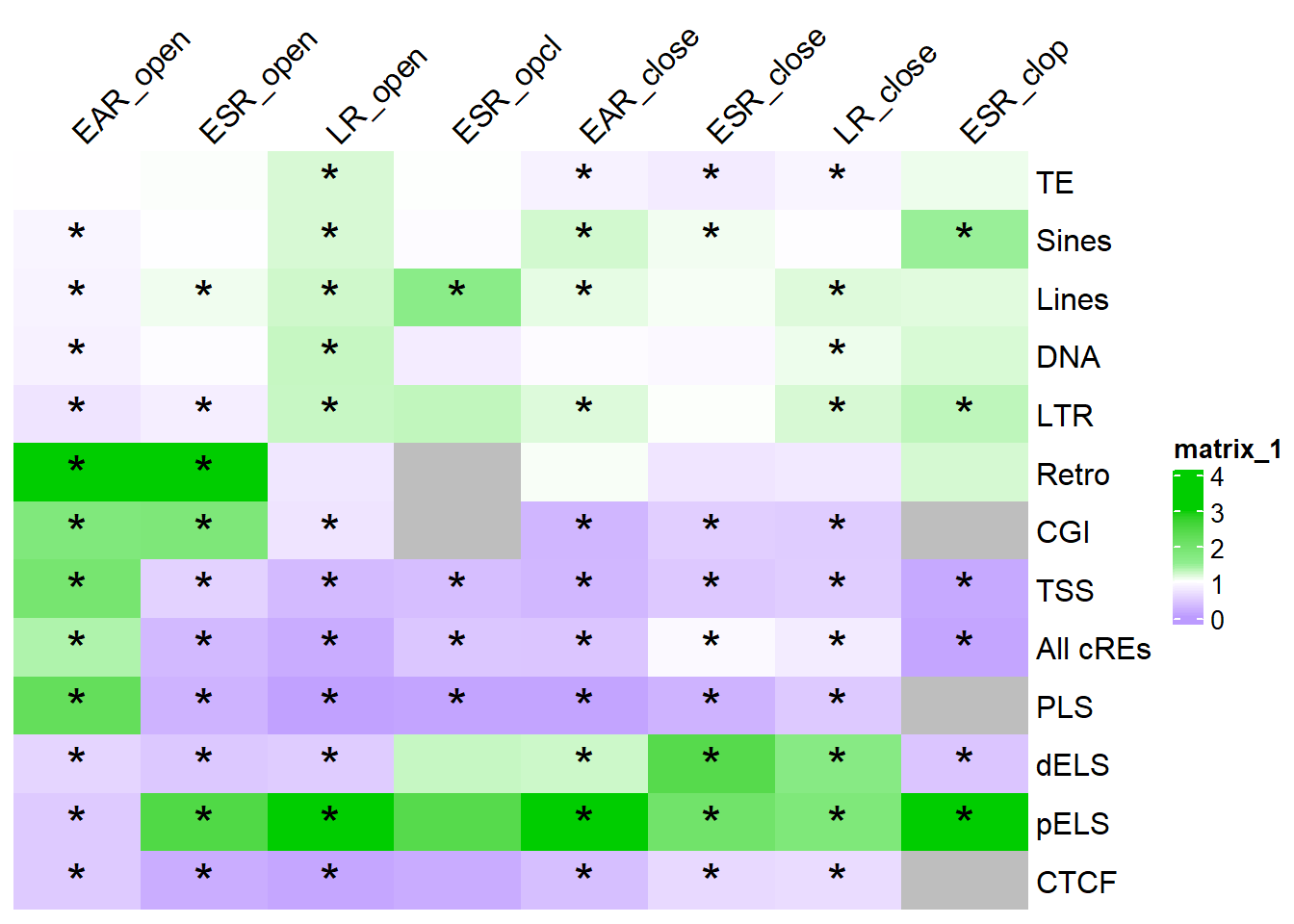

col_fun_OR = colorRamp2(c(0,1,1.5,3,4), c("#BC9BFF","white","lightgreen","green3","green3" ))
sig_mat_OR <- results_or %>%
as.data.frame() %>%
dplyr::select( Matrix_Name,Row_Compared,P_Value) %>%
pivot_wider(., id_cols = Matrix_Name, names_from = Row_Compared, values_from = P_Value) %>%
column_to_rownames("Matrix_Name") %>%
as.matrix()
# results_or %>%
# as.data.frame() %>%
# dplyr::select( Matrix_Name,Row_Compared,Odds_Ratio) %>%
# pivot_wider(., id_cols = Matrix_Name, names_from = Row_Compared, values_from = Odds_Ratio) %>%
# column_to_rownames("Matrix_Name") %>%
# as.matrix() %>%
# ComplexHeatmap::Heatmap(. ,col = col_fun_OR,
# cluster_rows=FALSE,
# cluster_columns=FALSE,
# column_names_side = "top",
# column_names_rot = 45,
# # na_col = "black",
# cell_fun = function(j, i, x, y, width, height, fill) {if (!is.na(sig_mat_OR[i, j]) && sig_mat_OR[i, j] < 0.05)
# grid.text("*", x, y, gp = gpar(fontsize = 20))})cRE dataframes
cREs_HLV_46F <- genomation::readBed("data/enhancerdata/ENCFF867HAD_ENCFF152PBB_ENCFF352YYH_ENCFF252IVK.7group.bed")
NR_gr <- NR %>% GRanges()
LR_open_gr <- LR_open %>% GRanges()
LR_close_gr <- LR_close%>% GRanges()
EAR_open_gr <- EAR_open%>% GRanges()
EAR_close_gr <- EAR_close%>% GRanges()
ESR_open_gr <- ESR_open%>% GRanges()
ESR_close_gr <- ESR_close%>% GRanges()
ESR_opcl_gr <- ESR_opcl%>% GRanges()
ESR_clop_gr <- ESR_clop%>% GRanges()
NR_cREs <- join_overlap_intersect(NR_gr,cREs_HLV_46F)
LR_open_cREs <- join_overlap_intersect(LR_open_gr,cREs_HLV_46F)
LR_close_cREs <- join_overlap_intersect(LR_close_gr,cREs_HLV_46F)
ESR_open_cREs <- join_overlap_intersect(ESR_open_gr,cREs_HLV_46F)
ESR_close_cREs <- join_overlap_intersect(ESR_close_gr,cREs_HLV_46F)
ESR_opcl_cREs <- join_overlap_intersect(ESR_opcl_gr, cREs_HLV_46F)
ESR_clop_cREs <- join_overlap_intersect(ESR_clop_gr, cREs_HLV_46F)
EAR_open_cREs <- join_overlap_intersect(EAR_open_gr,cREs_HLV_46F)
EAR_close_cREs <- join_overlap_intersect(EAR_close_gr,cREs_HLV_46F)
Whole_peaks <- join_overlap_intersect(Col_TSS_data_gr, cREs_HLV_46F)
keep_cRE_names <- c("CTCF-only,CTCF-bound" ,"PLS,CTCF-bound","PLS","dELS,CTCF-bound", "pELS","pELS,CTCF-bound","dELS")
is_cRE <- Whole_peaks %>%
as.data.frame() %>%
dplyr::filter(blockCount %in% keep_cRE_names) %>%
distinct(Peakid,blockCount)
is_CTCF <- Whole_peaks %>%
as.data.frame() %>%
dplyr::filter(blockCount == "CTCF-only,CTCF-bound") %>%
distinct(Peakid,blockCount)
is_dELS <- Whole_peaks %>%
as.data.frame() %>%
dplyr::filter(blockCount == "dELS,CTCF-bound"|blockCount == "dELS") %>%
distinct(Peakid,blockCount)
is_pELS <- Whole_peaks %>%
as.data.frame() %>%
dplyr::filter(blockCount == "pELS,CTCF-bound"|blockCount == "pELS") %>%
distinct(Peakid,blockCount)
is_PLS <- Whole_peaks %>%
as.data.frame() %>%
dplyr::filter(blockCount == "PLS,CTCF-bound"|blockCount == "PLS") %>%
distinct(Peakid,blockCount)
CRE_summary <- Collapsed_peaks %>%
mutate(cRE_status=if_else(Peakid %in% is_cRE$Peakid,"cRE_peak","not_cRE_peak")) %>%
mutate(CTCF_status=if_else(Peakid %in% is_CTCF$Peakid,"CTCF_peak","not_CTCF_peak")) %>%
mutate(dELS_status=if_else(Peakid %in% is_dELS$Peakid,"dELS_peak","not_dELS_peak")) %>%
mutate(pELS_status=if_else(Peakid %in% is_pELS$Peakid,"pELS_peak","not_pELS_peak")) %>%
mutate(PLS_status=if_else(Peakid %in% is_PLS$Peakid,"PLS_peak","not_PLS_peak")) %>%
mutate(mrc = case_when(
Peakid %in% EAR_open$Peakid ~ "EAR_open",
Peakid %in% EAR_close$Peakid ~ "EAR_close",
Peakid %in% ESR_open$Peakid ~ "ESR_open",
Peakid %in% ESR_close$Peakid ~ "ESR_close",
Peakid %in% ESR_opcl$Peakid ~ "ESR_opcl",
Peakid %in% LR_open$Peakid ~ "LR_open",
Peakid %in% LR_close$Peakid ~ "LR_close",
Peakid %in% NR$Peakid ~ "NR",
Peakid %in% ESR_clop$Peakid ~ "ESR_clop",
TRUE ~ "not_mrc"
)) cRE contingency matricies
cRE_mat<- CRE_summary %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(cRE_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = cRE_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
CTCF_mat<- CRE_summary %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(CTCF_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = CTCF_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
dELS_mat<- CRE_summary %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(dELS_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = dELS_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
pELS_mat<- CRE_summary %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(pELS_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = pELS_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)
PLS_mat<- CRE_summary %>%
dplyr::filter(mrc != "not_mrc") %>%
group_by(PLS_status, mrc) %>%
tally %>%
mutate(mrc= factor(mrc, levels = c("EAR_open","EAR_close","ESR_open", "ESR_close", "ESR_opcl", "ESR_clop","LR_open","LR_close","NR"))) %>%
pivot_wider(id_cols = mrc, names_from = PLS_status,values_from = n) %>%
column_to_rownames("mrc") %>%
na.omit(.) %>%
as.matrix(.)cRE odds ratio
matrix_list_cre <- list("PLS"=PLS_mat, "dELS"=dELS_mat, "pELS"=pELS_mat,"CTCF"= CTCF_mat,"All cREs"= cRE_mat)
results_or_cre <- data.frame(Matrix_Name = character(),
Row_Compared = character(),
Odds_Ratio = numeric(),
Lower_CI = numeric(),
Upper_CI = numeric(),
P_Value = numeric(),
stringsAsFactors = FALSE)
# Loop through each matrix in the list
for (matrix_name in names(matrix_list_cre)) {
current_matrix <- matrix_list_cre[[matrix_name]]
n_rows <- nrow(current_matrix)
# Loop through each row of the current matrix (except the last row)
for (i in 1:(n_rows - 1)) {
# Perform odds ratio test between row i and the last row using epitools
test_result <- tryCatch({
contingency_table <- rbind(current_matrix[i, ], current_matrix[n_rows, ])
# Check if any row in the contingency table contains only zeros
if (any(rowSums(contingency_table) == 0)) {
stop("Contingency table contains empty rows.")
}
oddsratio_result <- oddsratio(contingency_table)
# Ensure the oddsratio result has at least 2 rows
if (nrow(oddsratio_result$measure) < 2) {
stop("oddsratio result does not have enough data.")
}
list(oddsratio = oddsratio_result, p.value = oddsratio_result$p.value[2,"chi.square"])
}, error = function(e) {
cat("Error in odds ratio test for row", i, "in matrix", matrix_name, ":", e$message, "\n")
return(NULL)
})
# Only store the result if test_result is valid (i.e., not NULL)
if (!is.null(test_result)) {
or_value <- test_result$oddsratio$measure[2, "estimate"]
lower_ci <- test_result$oddsratio$measure[2, "lower"]
upper_ci <- test_result$oddsratio$measure[2, "upper"]
p_value <- test_result$oddsratio$p.value[2,"chi.square"]
# Check if the values are numeric and valid (not NA)
if (!is.na(or_value) && !is.na(lower_ci) && !is.na(upper_ci) && !is.na(p_value)) {
# Store the results in the dataframe
results_or_cre <- rbind(results_or_cre, data.frame(Matrix_Name = matrix_name,
Row_Compared = rownames(current_matrix)[i],
Odds_Ratio = or_value,
Lower_CI = lower_ci,
Upper_CI = upper_ci,
P_Value = p_value))
}
}
}
}
results_or_cre <- results_or_cre %>%
mutate(Matrix_Name=factor(Matrix_Name, levels=c("All cREs","PLS","dELS", "pELS","CTCF"))) %>%
mutate(Row_Compared=factor(Row_Compared, levels = c("EAR_open","ESR_open", "LR_open","ESR_opcl", "EAR_close", "ESR_close", "LR_close", "ESR_clop"))) %>%
arrange(Matrix_Name,Row_Compared)
col_fun_cre = colorRamp2(c(0,1,1.5,3,4), c("#BC9BFF","white","lightgreen","green3","green3" ))
sig_mat_cre <- results_or_cre %>%
as.data.frame() %>%
dplyr::select( Matrix_Name,Row_Compared,P_Value) %>%
pivot_wider(., id_cols = Matrix_Name, names_from = Row_Compared, values_from = P_Value) %>%
column_to_rownames("Matrix_Name") %>%
as.matrix()
# results_or_cre %>%
# as.data.frame() %>%
# dplyr::select( Matrix_Name,Row_Compared,Odds_Ratio) %>%
# pivot_wider(., id_cols = Matrix_Name, names_from = Row_Compared, values_from = Odds_Ratio) %>%
# column_to_rownames("Matrix_Name") %>%
# as.matrix() %>%
# ComplexHeatmap::Heatmap(. ,col = col_fun_cre,
# cluster_rows=FALSE,
# cluster_columns=FALSE,
# column_names_side = "top",
# column_names_rot = 45,
# cell_fun = function(j, i, x, y, width, height, fill) {if (!is.na(sig_mat_cre[i, j]) && sig_mat_cre[i, j] < 0.05)
# grid.text("*", x, y, gp = gpar(fontsize = 20))})Now to adjust P-values BH style:
bot_df <- results_or_cre
top_df <- results_or
results_order <- top_df %>%
rbind(bot_df) %>%
mutate(Matrix_Name=factor(Matrix_Name,
levels=c("TE",
"Sines",
"Lines",
"DNA","LTR",
"Retro","CGI",
"TSS","All cREs",
"PLS","dELS","pELS",
"CTCF"))) %>%
arrange(Matrix_Name) %>%
group_by(Row_Compared) %>%
mutate(rank_val=rank(P_Value, ties.method = "first")) %>%
mutate(BH_correction= p.adjust(P_Value,method= "BH")) %>%
mutate(sig=P_Value<BH_correction) %>%
mutate(Row_Compared=factor(Row_Compared,levels = c("EAR_open", "ESR_open", "LR_open","ESR_opcl",
"EAR_close","ESR_close","LR_close","ESR_clop")))
critical_value <- max(results_order$P_Value[results_order$sig])
col_fun_OR = colorRamp2(c(0,1,1.5,3,4), c("#BC9BFF","white","lightgreen","green3","green3" ))
sig_mat_OR <- results_order %>%
as.data.frame() %>%
dplyr::select( Matrix_Name,Row_Compared,BH_correction) %>%
arrange(Matrix_Name) %>%
pivot_wider(., id_cols = Matrix_Name, names_from = Row_Compared, values_from = BH_correction) %>%
dplyr::select(Matrix_Name,EAR_open,ESR_open,LR_open,ESR_opcl,EAR_close,ESR_close,LR_close,ESR_clop) %>%
column_to_rownames("Matrix_Name") %>%
as.matrix()
results_mat <- results_order %>%
as.data.frame() %>%
dplyr::select( Matrix_Name,Row_Compared,Odds_Ratio) %>%
arrange(Matrix_Name) %>%
pivot_wider(., id_cols = Matrix_Name, names_from = Row_Compared, values_from = Odds_Ratio) %>%
dplyr::select(Matrix_Name,EAR_open,ESR_open,LR_open,ESR_opcl,EAR_close,ESR_close,LR_close,ESR_clop) %>%
column_to_rownames("Matrix_Name") %>%
as.matrix()
#%>%
ComplexHeatmap::Heatmap(results_mat ,col = col_fun_OR,
cluster_rows=FALSE,
cluster_columns=FALSE,
column_names_side = "top",
column_names_rot = 45,
# na_col = "black",
cell_fun = function(j, i, x, y, width, height, fill) {
if (!is.na(sig_mat_OR[i, j]) && sig_mat_OR[i, j] <0.05) {
grid.text("*", x, y, gp = gpar(fontsize = 20)) # Add star if significant
} })
| Version | Author | Date |
|---|---|---|
| b735dc1 | E. Renee Matthews | 2025-02-24 |

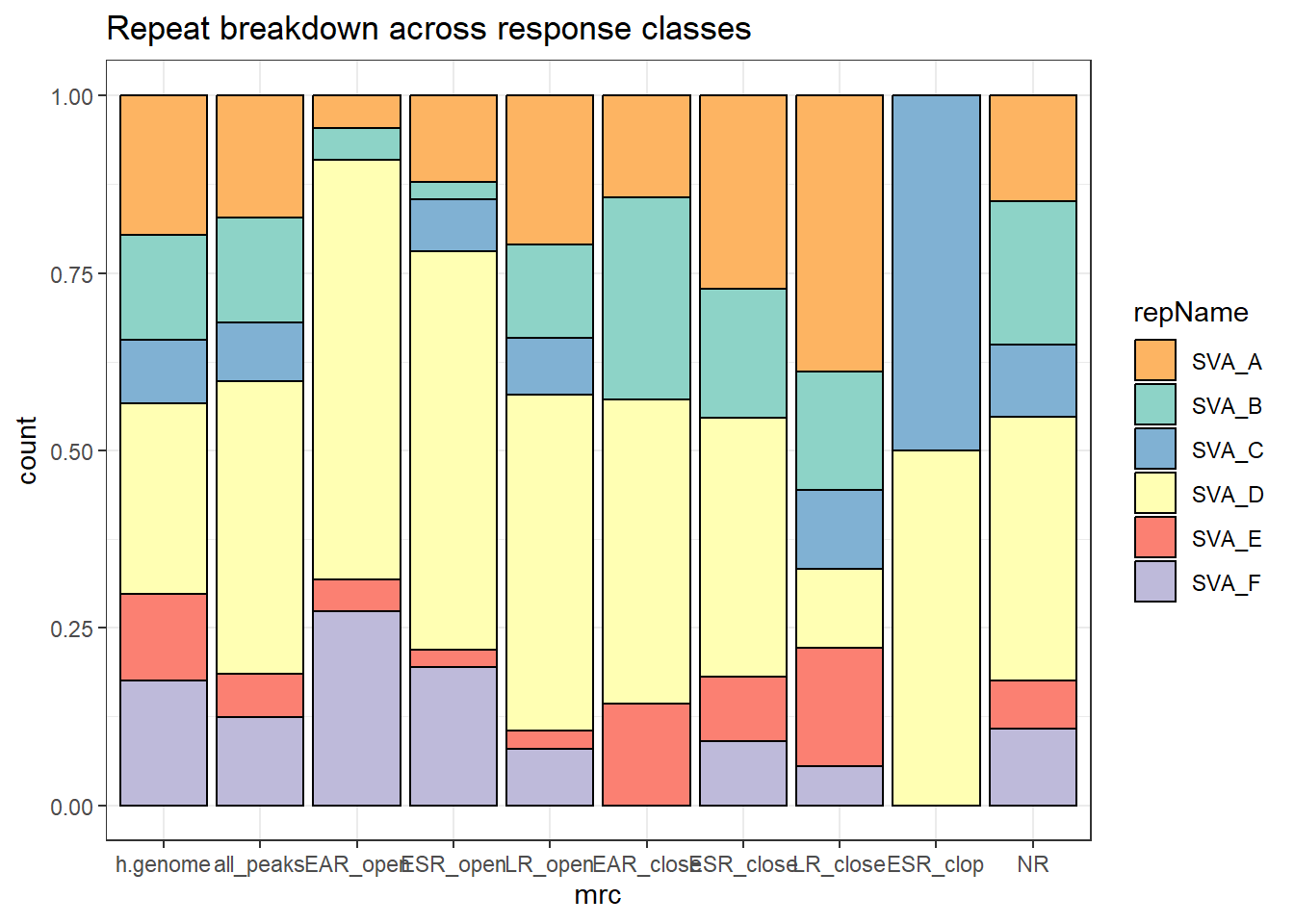

Figure 2.B: SVAs (Retrotransposons in repeatmasker)
retroposon_repeats <- repeatmasker %>%
dplyr::filter(repClass == "Retroposon") %>%
makeGRangesFromDataFrame(., keep.extra.columns = TRUE, seqnames.field = "genoName", start.field = "genoStart", end.field = "genoEnd",starts.in.df.are.0based=TRUE)
retroposon_df <- retroposon_repeats %>%
as.data.frame() %>%
mutate(repName=factor(repName))
scale_fill_retroposons <- function(...){
ggplot2:::manual_scale(
'fill',
values = setNames(c( "#8DD3C7",
"#FFFFB3",
"#BEBADA" ,
"#FB8072",
"#80B1D3",
"#FDB462",
"#B3DE69",
"#FCCDE5",
"#D9D9D9",
"#BC80BD",
"#CCEBC5",
"pink4",
"cornflowerblue",
"chocolate",
"brown",
"green",
"yellow4",
"purple",
"darkorchid4",
"coral4",
"darkolivegreen4",
"darkorange"), unique(retroposon_df$repName)),
...
)
}
h.genome_df <- repeatmasker %>%
mutate(repClass_org = repClass) %>% #copy repClass for storage
mutate(repClass=if_else(##relable repClass with other
repClass_org=="LINE", repClass_org,if_else(repClass_org=="SINE",repClass_org,if_else(repClass_org=="LTR", repClass_org, if_else(repClass_org=="DNA", repClass_org, if_else(repClass_org=="Retroposon",repClass_org,"Other")))))) %>%
mutate(Peakid=paste0(rownames(.),"_TE")) %>%
dplyr::select(Peakid,repName,repClass, repFamily,repClass_org) %>%
mutate(TEstatus ="TE_peak", mrc="h.genome",per_ol = "NA", width="NA")
ggretroposon_df <-Nine_te_df %>%
dplyr::filter(repClass=="Retroposon") %>%
distinct(Peakid, TEstatus,repClass,.keep_all = TRUE) %>%
mutate(mrc="all_peaks")
h.genome_SVA <-h.genome_df %>%
dplyr::filter(repClass=="Retroposon") %>%
rbind(., (ggretroposon_df %>% dplyr::select(Peakid:repFamily,width, mrc, per_ol,TEstatus,repClass_org))) %>%
rbind(., (Nine_te_df %>%
dplyr::filter(repClass=="Retroposon") %>%
dplyr::select(Peakid:repFamily,width, mrc, per_ol,TEstatus,repClass_org) %>%
dplyr::filter(mrc != "not_mrc")))%>%
mutate(repName=factor(repName)) %>%
mutate(mrc=factor(mrc, levels = c("h.genome", "all_peaks", "EAR_open","ESR_open","LR_open","ESR_opcl", "EAR_close","ESR_close","LR_close","ESR_clop","NR")))
h.genome_SVA %>%
dplyr::filter(TEstatus=="TE_peak") %>%
ggplot(., aes(x=mrc, fill= repName))+
geom_bar(position="fill", col="black")+
theme_bw()+
ggtitle("Repeat breakdown across response classes")+
scale_fill_retroposons()
| Version | Author | Date |
|---|---|---|
| b735dc1 | E. Renee Matthews | 2025-02-24 |

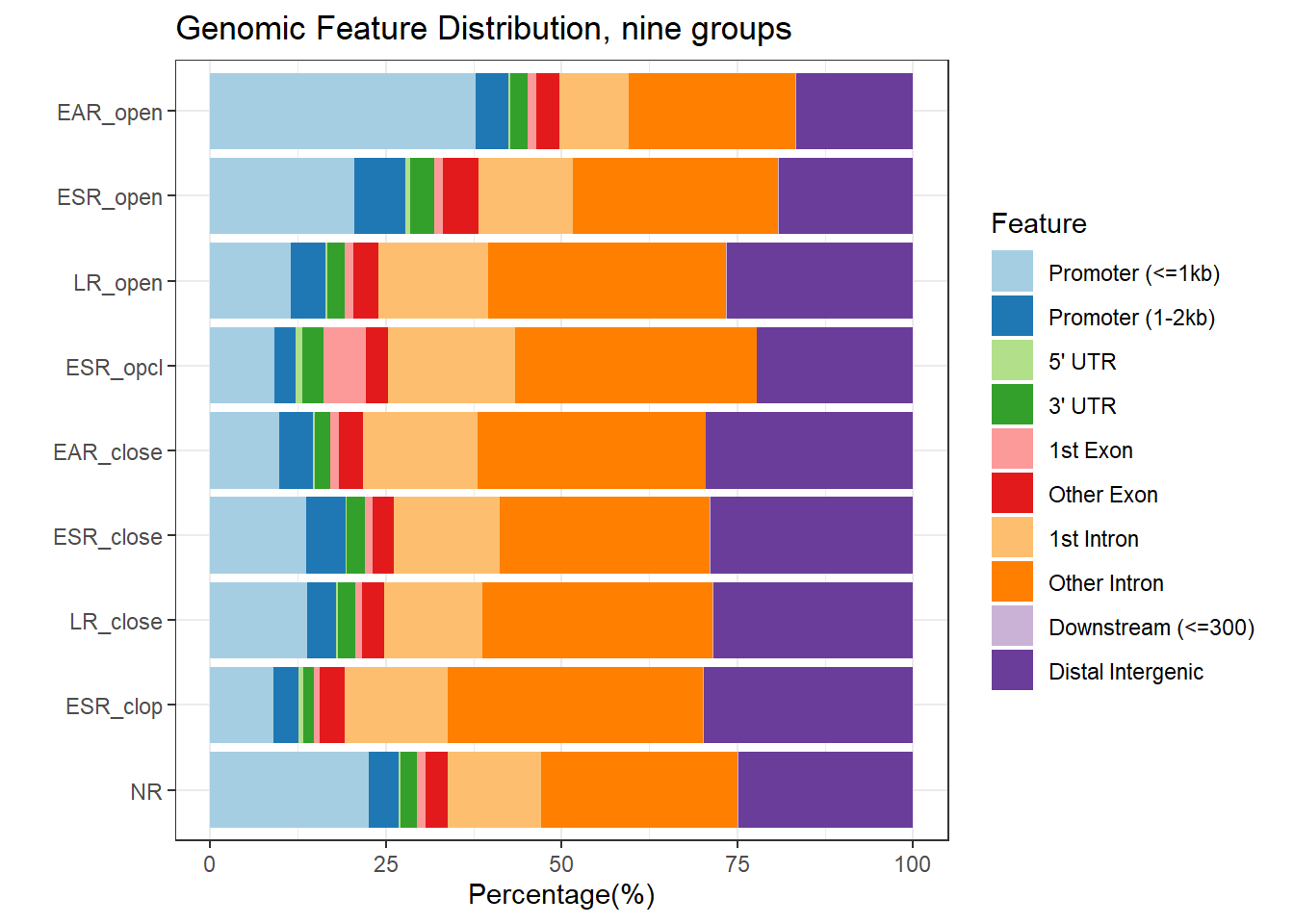

Figure 2.C: Gene elements distribution
# mylist_new <- list("EAR_open"=EAR_open_gr,
# "EAR_close"=EAR_close_gr,
# "ESR_open"=ESR_open_gr,
# "ESR_close"=ESR_close_gr,
# "ESR_opcl"=ESR_opcl_gr,
# "ESR_clop"=ESR_clop_gr,
# "LR_open"=LR_open_gr,
# "LR_close"=LR_close_gr,
# "NR"=NR_gr,
# "background"=background_gr)
#
# peakAnnoList<- lapply(mylist_new, annotatePeak, tssRegion =c(-2000,2000), TxDb= txdb)
# names(peakAnnoList) <- c("EAR_open", "EAR_close","ESR_open", "ESR_close","ESR_opcl","ESR_clop", "LR_open", "LR_close","NR","background")
# saveRDS(peakAnnoList, "data/Final_four_data/peakAnnoList_ff_9motif.RDS")
peakAnnoList_9_motif <- readRDS("data/Final_four_data/peakAnnoList_ff_9motif.RDS")
plotAnnoBar(peakAnnoList_9_motif[c(1,3,7,5,2,4,8,6,9)])+
ggtitle ("Genomic Feature Distribution, nine groups")
| Version | Author | Date |
|---|---|---|
| b735dc1 | E. Renee Matthews | 2025-02-24 |
sessionInfo()R version 4.4.2 (2024-10-31 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)
Matrix products: default
locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] grid stats4 stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] ChIPseeker_1.42.1
[2] epitools_0.5-10.1
[3] circlize_0.4.16
[4] readxl_1.4.5
[5] smplot2_0.2.5
[6] cowplot_1.1.3
[7] ComplexHeatmap_2.22.0
[8] ggrepel_0.9.6
[9] plyranges_1.26.0
[10] ggsignif_0.6.4
[11] genomation_1.38.0
[12] ggpubr_0.6.0
[13] BiocParallel_1.40.0
[14] scales_1.3.0
[15] gridExtra_2.3
[16] ggfortify_0.4.17
[17] rtracklayer_1.66.0
[18] org.Hs.eg.db_3.20.0
[19] TxDb.Hsapiens.UCSC.hg38.knownGene_3.20.0
[20] GenomicFeatures_1.58.0
[21] AnnotationDbi_1.68.0
[22] Biobase_2.66.0
[23] GenomicRanges_1.58.0
[24] GenomeInfoDb_1.42.3
[25] IRanges_2.40.1
[26] S4Vectors_0.44.0
[27] BiocGenerics_0.52.0
[28] RColorBrewer_1.1-3
[29] broom_1.0.7
[30] kableExtra_1.4.0
[31] lubridate_1.9.4
[32] forcats_1.0.0
[33] stringr_1.5.1
[34] dplyr_1.1.4
[35] purrr_1.0.4
[36] readr_2.1.5
[37] tidyr_1.3.1
[38] tibble_3.2.1
[39] ggplot2_3.5.1
[40] tidyverse_2.0.0
[41] workflowr_1.7.1
loaded via a namespace (and not attached):
[1] fs_1.6.5
[2] matrixStats_1.5.0
[3] bitops_1.0-9
[4] enrichplot_1.26.6
[5] httr_1.4.7
[6] doParallel_1.0.17
[7] tools_4.4.2
[8] backports_1.5.0
[9] R6_2.6.1
[10] lazyeval_0.2.2
[11] GetoptLong_1.0.5
[12] withr_3.0.2
[13] cli_3.6.4
[14] labeling_0.4.3
[15] sass_0.4.9
[16] Rsamtools_2.22.0
[17] systemfonts_1.2.1
[18] yulab.utils_0.2.0
[19] foreign_0.8-88
[20] DOSE_4.0.0
[21] svglite_2.1.3
[22] R.utils_2.13.0
[23] plotrix_3.8-4
[24] BSgenome_1.74.0
[25] pwr_1.3-0
[26] rstudioapi_0.17.1
[27] impute_1.80.0
[28] RSQLite_2.3.9
[29] generics_0.1.3
[30] gridGraphics_0.5-1
[31] TxDb.Hsapiens.UCSC.hg19.knownGene_3.2.2
[32] shape_1.4.6.1
[33] BiocIO_1.16.0
[34] gtools_3.9.5
[35] vroom_1.6.5
[36] car_3.1-3
[37] GO.db_3.20.0
[38] Matrix_1.7-3
[39] abind_1.4-8
[40] R.methodsS3_1.8.2
[41] lifecycle_1.0.4
[42] whisker_0.4.1
[43] yaml_2.3.10
[44] carData_3.0-5
[45] SummarizedExperiment_1.36.0
[46] gplots_3.2.0
[47] qvalue_2.38.0
[48] SparseArray_1.6.2
[49] blob_1.2.4
[50] promises_1.3.2
[51] crayon_1.5.3
[52] ggtangle_0.0.6
[53] lattice_0.22-6
[54] KEGGREST_1.46.0
[55] magick_2.8.5
[56] pillar_1.10.1
[57] knitr_1.49
[58] fgsea_1.32.2
[59] rjson_0.2.23
[60] boot_1.3-31
[61] codetools_0.2-20
[62] fastmatch_1.1-6
[63] glue_1.8.0
[64] getPass_0.2-4
[65] ggfun_0.1.8
[66] data.table_1.17.0
[67] vctrs_0.6.5
[68] png_0.1-8
[69] treeio_1.30.0
[70] cellranger_1.1.0
[71] gtable_0.3.6
[72] cachem_1.1.0
[73] xfun_0.51
[74] S4Arrays_1.6.0
[75] iterators_1.0.14
[76] nlme_3.1-167
[77] ggtree_3.14.0
[78] bit64_4.6.0-1
[79] rprojroot_2.0.4
[80] bslib_0.9.0
[81] KernSmooth_2.23-26
[82] rpart_4.1.24
[83] colorspace_2.1-1
[84] DBI_1.2.3
[85] Hmisc_5.2-2
[86] seqPattern_1.38.0
[87] nnet_7.3-20
[88] tidyselect_1.2.1
[89] processx_3.8.6
[90] bit_4.6.0
[91] compiler_4.4.2
[92] curl_6.2.1
[93] git2r_0.35.0
[94] htmlTable_2.4.3
[95] xml2_1.3.7
[96] DelayedArray_0.32.0
[97] caTools_1.18.3
[98] checkmate_2.3.2
[99] callr_3.7.6
[100] digest_0.6.37
[101] rmarkdown_2.29
[102] XVector_0.46.0
[103] htmltools_0.5.8.1
[104] pkgconfig_2.0.3
[105] base64enc_0.1-3
[106] MatrixGenerics_1.18.1
[107] fastmap_1.2.0
[108] rlang_1.1.5
[109] GlobalOptions_0.1.2
[110] htmlwidgets_1.6.4
[111] UCSC.utils_1.2.0
[112] farver_2.1.2
[113] jquerylib_0.1.4
[114] zoo_1.8-13
[115] jsonlite_1.9.1
[116] GOSemSim_2.32.0
[117] R.oo_1.27.0
[118] RCurl_1.98-1.16
[119] magrittr_2.0.3
[120] Formula_1.2-5
[121] GenomeInfoDbData_1.2.13
[122] ggplotify_0.1.2
[123] patchwork_1.3.0
[124] munsell_0.5.1
[125] Rcpp_1.0.14
[126] ape_5.8-1
[127] stringi_1.8.4
[128] zlibbioc_1.52.0
[129] plyr_1.8.9
[130] parallel_4.4.2
[131] Biostrings_2.74.1
[132] splines_4.4.2
[133] hms_1.1.3
[134] ps_1.9.0
[135] igraph_2.1.4
[136] reshape2_1.4.4
[137] XML_3.99-0.18
[138] evaluate_1.0.3
[139] tzdb_0.4.0
[140] foreach_1.5.2
[141] httpuv_1.6.15
[142] clue_0.3-66
[143] gridBase_0.4-7
[144] restfulr_0.0.15
[145] tidytree_0.4.6
[146] rstatix_0.7.2
[147] later_1.4.1
[148] viridisLite_0.4.2
[149] aplot_0.2.5
[150] memoise_2.0.1
[151] GenomicAlignments_1.42.0
[152] cluster_2.1.8.1
[153] timechange_0.3.0
