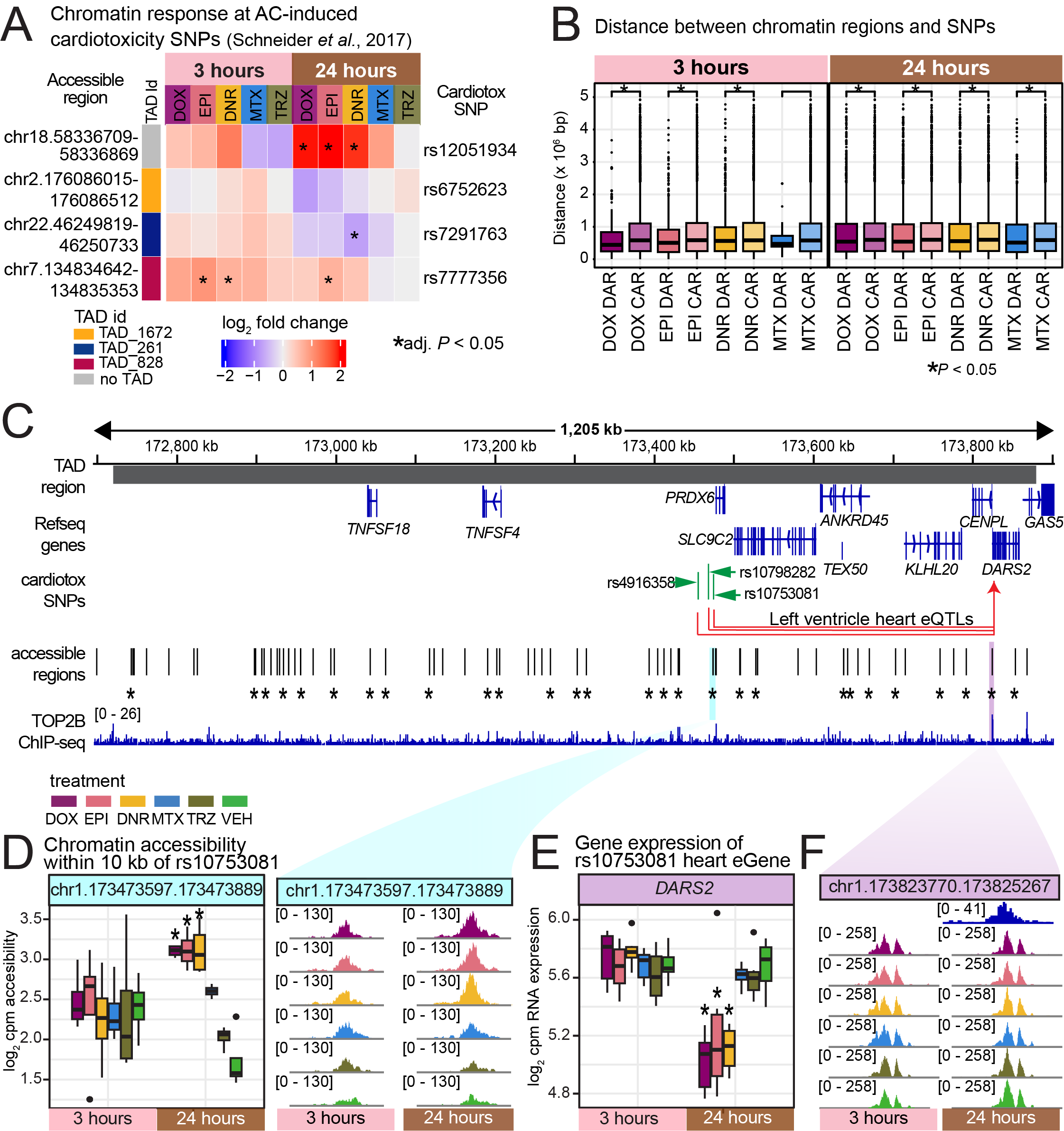

Figure 5: Drug-responsive regions are near AC-induced cardiotoxicity-associated SNPs

knitr::include_graphics("assets/Figure\ 5.png", error=FALSE)

Version	Author	Date
b33af76	reneeisnowhere	2025-05-01
ca5c73f	E. Renee Matthews	2025-02-26
50f3de9	E. Renee Matthews	2025-02-21

knitr::include_graphics("docs/assets/Figure\ 5.png",error = FALSE)

Figure 5.A. Chromatin response at AC-induced cardiotoxicity SNPs

### Pulling the all regions granges list from the motif list of lists
Motif_list_gr <- readRDS("data/Final_four_data/re_analysis/Motif_list_granges.RDS")
### no change motif_list_gr names so they do not overwrite the dataframes
names(Motif_list_gr) <- paste0(names(Motif_list_gr), "_gr")

### this pulls out the all_regions_gr granges frame I made previously with 155,557 regions listed
list2env(Motif_list_gr[10],envir= .GlobalEnv)

<environment: R_GlobalEnv>

annotated_DARs<- readRDS("data/Final_four_data/re_analysis/DOX_DAR_annotated_peaks_chipannno.RDS")

DOX_24_DAR <- as.data.frame(annotated_DARs$DOX_24)
EPI_24_DAR <- as.data.frame(annotated_DARs$EPI_24)
DNR_24_DAR <- as.data.frame(annotated_DARs$DNR_24)
MTX_24_DAR <- as.data.frame(annotated_DARs$MTX_24)

DOX_3_DAR <- as.data.frame(annotated_DARs$DOX_3)
EPI_3_DAR <- as.data.frame(annotated_DARs$EPI_3)
DNR_3_DAR <- as.data.frame(annotated_DARs$DNR_3)
MTX_3_DAR <- as.data.frame(annotated_DARs$MTX_3)

Left_ventricle_TAD <- import(con = "C://Users/renee/Downloads/hg38.TADs/hg38/VentricleLeft_STL003_Leung_2015-raw_TADs.txt", format = "bed",genome="hg38")
mcols(Left_ventricle_TAD)$TAD_id <- paste0("TAD_", seq_along(Left_ventricle_TAD))


Schneider_all_SNPS <- read_delim("data/other_papers/Schneider_all_SNPS.txt",
    delim = "\t", escape_double = FALSE,
    trim_ws = TRUE)

Schneider_all_SNPS_df <- Schneider_all_SNPS %>%
  dplyr::rename("RSID"="#Uploaded_variation") %>%
  dplyr::select(RSID,Location,SYMBOL,Gene, SOURCE) %>%
  distinct(RSID,Location,SYMBOL,.keep_all = TRUE) %>%
  dplyr::rename("Close_SYMBOL"="SYMBOL") %>%
  dplyr::filter(!str_starts(Location, "H")) %>%
  separate_wider_delim(Location,delim=":",names=c("Chr","Coords")) %>%
  separate_wider_delim(Coords,delim= "-", names= c("Start","End")) %>%
  mutate(Chr=paste0("chr",Chr)) %>%
  group_by(RSID) %>%
  reframe(Chr=unique(Chr),
            Start=unique(Start),
            End=unique(End),
            Close_SYMBOL=paste(unique(Close_SYMBOL),collapse=";"),
            Gene=paste(Gene,collapse=";"),
            SOURCE=paste(SOURCE,collapse=";")
            ) %>%
  GRanges() %>% as.data.frame

schneider_gr <-Schneider_all_SNPS_df%>%
  dplyr::select(seqnames,start,end,RSID:SOURCE) %>%
  distinct() %>%
  GRanges()

toptable_results <- readRDS("data/Final_four_data/re_analysis/Toptable_results.RDS")

all_results  <- toptable_results %>%
  imap(~ .x %>% tibble::rownames_to_column(var = "rowname") %>%
         mutate(source = .y)) %>%
  bind_rows()

all_results_pivot <- all_results %>%
dplyr::select(genes,logFC,source) %>%
  pivot_wider(., id_cols = genes, names_from = source, values_from = logFC) %>%
  dplyr::select(genes,DOX_3,EPI_3,DNR_3,MTX_3,TRZ_3,DOX_24,EPI_24,DNR_24,MTX_24,TRZ_24)


toplistall_RNA <- readRDS("data/other_papers/toplistall_RNA.RDS") %>%
  mutate(logFC = logFC*(-1))

Assigned_genes_toPeak <- annotated_DARs$DOX_24 %>% as.data.frame() %>%
  dplyr::select(mcols.genes,annotation, geneId, distanceToTSS) %>%
  dplyr::rename("Peakid"=mcols.genes)

RNA_results <-
toplistall_RNA %>%
  dplyr::select(time:logFC) %>%
  tidyr::unite("sample",time, id) %>%
  pivot_wider(., id_cols = c(ENTREZID,SYMBOL),names_from = sample, values_from = logFC) %>%
  rename_with(~ str_replace(., "hours", "RNA"))

Peak_gene_RNA_LFC <- Assigned_genes_toPeak %>%
  left_join(., RNA_results, by =c("geneId"="ENTREZID"))


entrez_ids <- Assigned_genes_toPeak$geneId


DOX_DAR_24hr_table <- annotated_DARs$DOX_24 %>%
  as.data.frame()

DOX_DAR_sig <- DOX_24_DAR %>%
  dplyr::filter(mcols.adj.P.Val<0.05) %>%
  distinct (mcols.genes) %>%
  dplyr::rename("Peakid"="mcols.genes")
DOX_DAR_sig_3 <- DOX_3_DAR %>%
  dplyr::filter(mcols.adj.P.Val<0.05) %>%
  distinct (mcols.genes) %>%
  dplyr::rename("Peakid"="mcols.genes")

EPI_DAR_sig <- EPI_24_DAR %>%
  dplyr::filter(mcols.adj.P.Val<0.05) %>%
  distinct (mcols.genes) %>%
  dplyr::rename("Peakid"="mcols.genes")

EPI_DAR_sig_3 <- EPI_3_DAR %>%
  dplyr::filter(mcols.adj.P.Val<0.05) %>%
  distinct (mcols.genes) %>%
  dplyr::rename("Peakid"="mcols.genes")

DNR_DAR_sig <- DNR_24_DAR %>%
  dplyr::filter(mcols.adj.P.Val<0.05) %>%
  distinct (mcols.genes) %>%
  dplyr::rename("Peakid"="mcols.genes")
DNR_DAR_sig_3 <- DNR_3_DAR %>%
  dplyr::filter(mcols.adj.P.Val<0.05) %>%
  distinct (mcols.genes) %>%
  dplyr::rename("Peakid"="mcols.genes")

MTX_DAR_sig <- MTX_24_DAR %>%
  dplyr::filter(mcols.adj.P.Val<0.05) %>%
  distinct (mcols.genes) %>%
  dplyr::rename("Peakid"="mcols.genes")
MTX_DAR_sig_3 <- MTX_3_DAR %>%
  dplyr::filter(mcols.adj.P.Val<0.05) %>%
  distinct (mcols.genes) %>%
  dplyr::rename("Peakid"="mcols.genes")

snp_tad_df <-
  join_overlap_inner(schneider_gr, Left_ventricle_TAD) %>%
  as_tibble() %>%
  dplyr::select(RSID, snp_start = start, snp_chr = seqnames, TAD_id)


peak_tad_df <-
join_overlap_inner(all_regions_gr, Left_ventricle_TAD) %>%
  as_tibble() %>%
  dplyr::select(Peakid, peak_start = start, peak_chr = seqnames, TAD_id)

peak_snp_pairs <- peak_tad_df %>%
  inner_join(snp_tad_df, by = "TAD_id")


peak_snp_pairs_dist <- peak_snp_pairs %>%
  mutate(distance = abs(peak_start - snp_start)) %>%
  mutate(sig_24= if_else(Peakid %in% DOX_DAR_sig$Peakid, "sig","not_sig"))



snp_peak_ol <- join_overlap_inner(all_regions_gr,schneider_gr)
  SNP_DAR_overlap_direct <- snp_peak_ol %>%
    as.data.frame() %>%
      mutate(Dox_24=if_else(Peakid %in% DOX_DAR_sig$Peakid,"yes","no")) %>%
  mutate(Epi_24=if_else(Peakid %in% EPI_DAR_sig$Peakid,"yes","no")) %>%
  mutate(Dnr_24=if_else(Peakid %in% DNR_DAR_sig$Peakid,"yes","no")) %>%
  mutate(MTx_24=if_else(Peakid %in% MTX_DAR_sig$Peakid,"yes","no")) %>%
    mutate(Dox_3=if_else(Peakid %in% DOX_DAR_sig_3$Peakid,"yes","no")) %>%
  mutate(Epi_3=if_else(Peakid %in% EPI_DAR_sig_3$Peakid,"yes","no")) %>%
  mutate(Dnr_3=if_else(Peakid %in% DNR_DAR_sig_3$Peakid,"yes","no")) %>%
  mutate(Mtx_3=if_else(Peakid %in% MTX_DAR_sig_3$Peakid,"yes","no")) %>%
    dplyr::select(Peakid,RSID,Dox_24:Mtx_3)

  ATAC_all_adj.pvals <- all_results%>%
dplyr::select(source,genes,adj.P.Val) %>%
    pivot_wider(id_cols=genes, values_from = adj.P.Val, names_from = source)

SNP_DAR_overlap_mat <-
SNP_DAR_overlap_direct %>%
  dplyr::select(Peakid,RSID) %>%
  left_join(., snp_tad_df,by= c("RSID"="RSID")) %>%
  dplyr::select(Peakid, TAD_id, RSID) %>%
 left_join(., all_results_pivot, by=c("Peakid"="genes")) %>%
  tidyr::unite(., name,Peakid,RSID)

SNP_DAR_sig_mat <-   SNP_DAR_overlap_direct %>%
    dplyr::select(Peakid,RSID) %>%
  left_join(., snp_tad_df,by= c("RSID"="RSID")) %>%
  dplyr::select(Peakid, TAD_id, RSID) %>%
    left_join(., ATAC_all_adj.pvals, by=c("Peakid"="genes")) %>%
    tidyr::unite(., name,Peakid,RSID) %>%
    column_to_rownames("name") %>%
  as.matrix()


Cardotox_mat_3 <-   SNP_DAR_overlap_mat %>%
  dplyr::select(name,DOX_3:TRZ_24) %>%
  column_to_rownames("name") %>%
  as.matrix()

annot_map_df_3 <- SNP_DAR_overlap_mat %>%
  dplyr::select(name,TAD_id) %>%
  column_to_rownames("name")
annot_map_3 <-
  ComplexHeatmap::rowAnnotation(TAD_id=SNP_DAR_overlap_mat$TAD_id)


simply_map_lfc_3 <- ComplexHeatmap::Heatmap(Cardotox_mat_3,
                        #                   col = col_fun,
                        left_annotation = annot_map_3,
                        column_title="Cardiotox SNP direct overlaps",
                        show_row_names = TRUE,
                       row_names_max_width= ComplexHeatmap::max_text_width(rownames(Cardotox_mat_3),                                                        gp=gpar(fontsize=14)),
                        heatmap_legend_param = list(direction = "horizontal"),
                        show_column_names = TRUE,
                        cluster_rows = FALSE,
                        cluster_columns = FALSE,
                       cell_fun = function(j, i, x, y, width, height, fill) {
  rowname <- rownames(Cardotox_mat_3)[i]
  colname <- colnames(Cardotox_mat_3)[j]

  if (!is.na(SNP_DAR_sig_mat[rowname, colname]) &&
      SNP_DAR_sig_mat[rowname, colname] < 0.05) {
    grid.text("*", x, y, gp = gpar(fontsize = 20))
  }
})




ComplexHeatmap::draw(simply_map_lfc_3,
     merge_legend = TRUE,

     heatmap_legend_side = "left",
    annotation_legend_side = "left")

Version	Author	Date
86820a3	E. Renee Matthews	2025-02-25

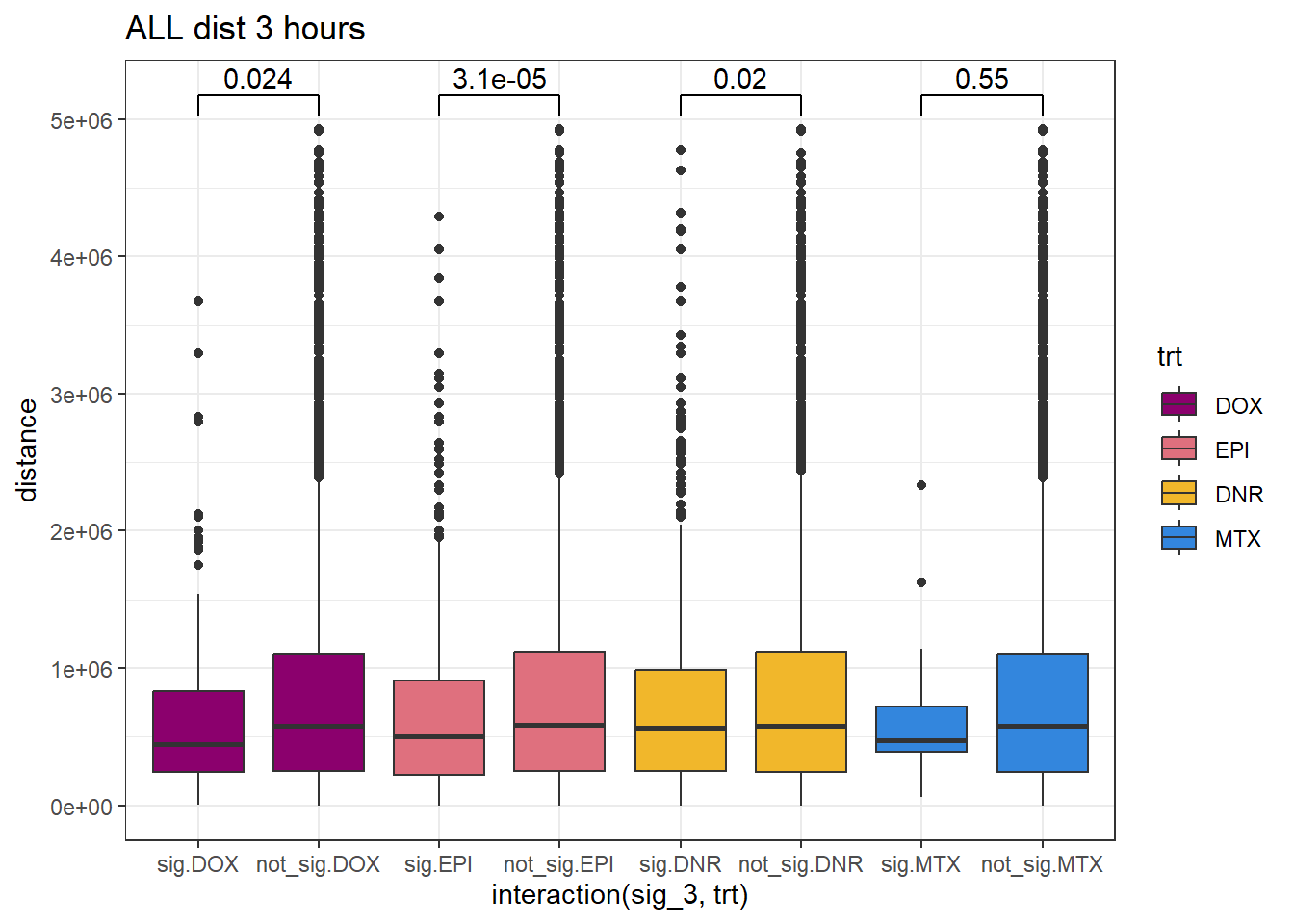

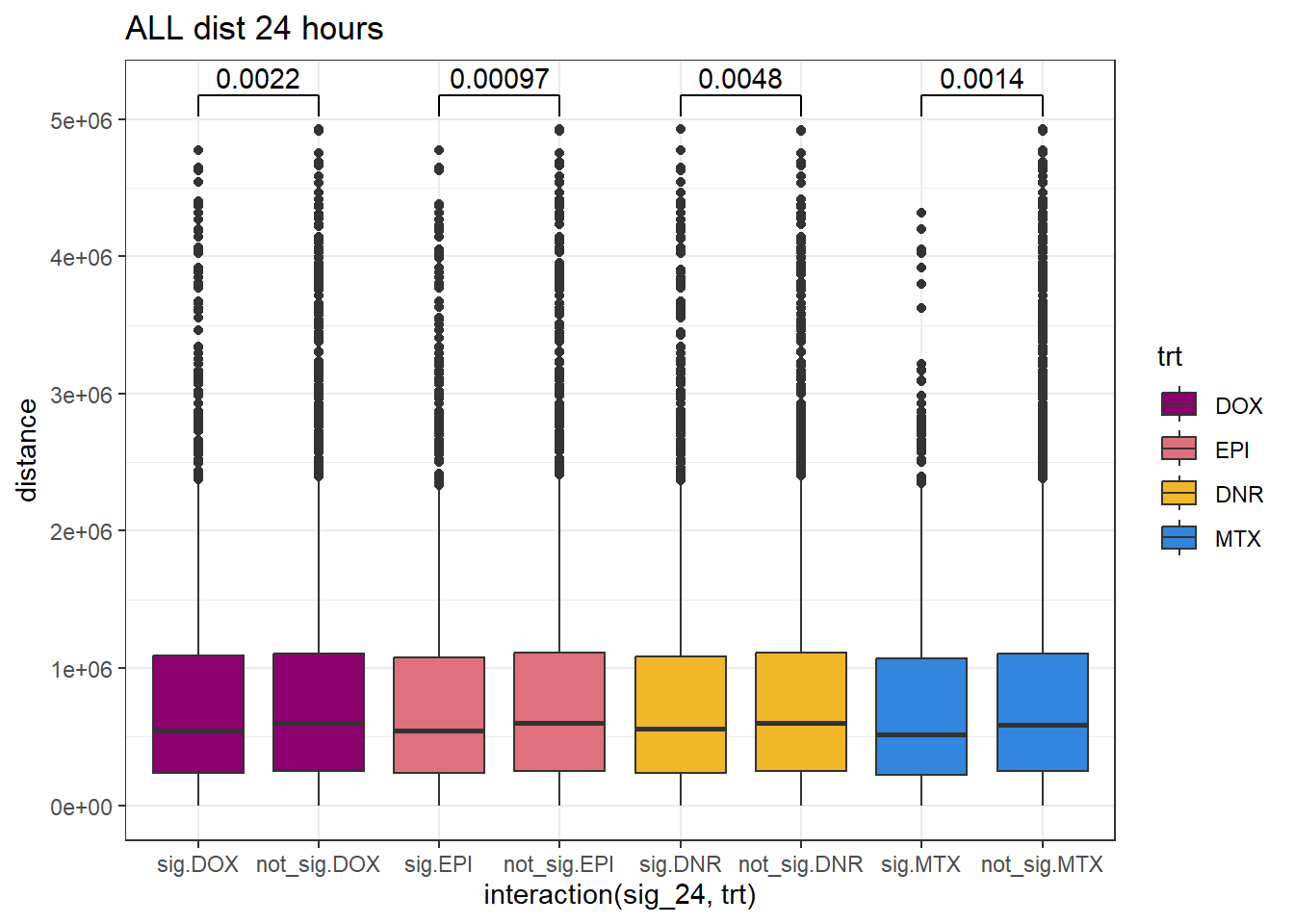

Figure 5.B. Distance between chromatin regions and SNPs

peak_snp_pairs_dist_DOX_3 <- peak_snp_pairs %>%
  mutate(distance = abs(peak_start - snp_start)) %>%
  mutate(sig_3= if_else(Peakid %in% DOX_DAR_sig_3$Peakid, "sig","not_sig"))

peak_snp_pairs_dist_EPI_3 <- peak_snp_pairs %>%
  mutate(distance = abs(peak_start - snp_start)) %>%
  mutate(sig_3= if_else(Peakid %in% EPI_DAR_sig_3$Peakid, "sig","not_sig"))

peak_snp_pairs_dist_DNR_3 <- peak_snp_pairs %>%
  mutate(distance = abs(peak_start - snp_start)) %>%
  mutate(sig_3= if_else(Peakid %in% DNR_DAR_sig_3$Peakid, "sig","not_sig"))

peak_snp_pairs_dist_MTX_3 <- peak_snp_pairs %>%
  mutate(distance = abs(peak_start - snp_start)) %>%
  mutate(sig_3= if_else(Peakid %in% MTX_DAR_sig_3$Peakid, "sig","not_sig"))
peak_snp_pairs_dist_MTX <- peak_snp_pairs %>%
  mutate(distance = abs(peak_start - snp_start)) %>%
  mutate(sig_24= if_else(Peakid %in% MTX_DAR_sig$Peakid, "sig","not_sig"))

peak_snp_pairs_dist_EPI <- peak_snp_pairs %>%
  mutate(distance = abs(peak_start - snp_start)) %>%
  mutate(sig_24= if_else(Peakid %in% EPI_DAR_sig$Peakid, "sig","not_sig"))

peak_snp_pairs_dist_DNR <- peak_snp_pairs %>%
  mutate(distance = abs(peak_start - snp_start)) %>%
  mutate(sig_24= if_else(Peakid %in% DNR_DAR_sig$Peakid, "sig","not_sig"))


drug_pal <- c("#8B006D","#DF707E","#F1B72B", "#3386DD","#707031","#41B333")


SNP_TAD_dist_DF_3 <- bind_rows((peak_snp_pairs_dist_MTX_3 %>%
             mutate(trt="MTX")),
          (peak_snp_pairs_dist_DOX_3 %>%
               mutate(trt="DOX"))) %>%
  bind_rows(.,(peak_snp_pairs_dist_EPI_3 %>%
                 mutate(trt="EPI"))) %>%
  bind_rows(.,(peak_snp_pairs_dist_DNR_3 %>%
                 mutate(trt="DNR"))) %>%
  mutate(trt=factor(trt,levels=c("DOX","EPI","DNR","MTX"))) %>%
   mutate(sig_3=factor(sig_3, levels= c("sig","not_sig")))

SNP_TAD_dist_DF_3%>%
  ggplot(., aes(x= interaction(sig_3,trt), y=distance))+
  geom_boxplot(aes(fill=trt))+
  theme_bw()+
  geom_signif(comparisons = list(c("sig.DOX", "not_sig.DOX"),
                                 c("sig.EPI","not_sig.EPI"),
                                 c("sig.DNR", "not_sig.DNR"),
                                 c("sig.MTX", "not_sig.MTX")),
                              # step_increase = 0.1,
              map_signif_level = FALSE,
              test = "wilcox.test")+
  ggtitle("ALL dist 3 hours")+
  scale_fill_manual(values=drug_pal)

SNP_TAD_dist_DF <- bind_rows((peak_snp_pairs_dist_MTX %>%
             mutate(trt="MTX")),
          (peak_snp_pairs_dist %>%
               mutate(trt="DOX"))) %>%
  bind_rows(.,(peak_snp_pairs_dist_EPI %>%
                 mutate(trt="EPI"))) %>%
  bind_rows(.,(peak_snp_pairs_dist_DNR %>%
                 mutate(trt="DNR"))) %>%
  mutate(trt=factor(trt,levels=c("DOX","EPI","DNR","MTX"))) %>%
   mutate(sig_24=factor(sig_24, levels= c("sig","not_sig")))

SNP_TAD_dist_DF%>%
  ggplot(., aes(x= interaction(sig_24,trt), y=distance))+
  geom_boxplot(aes(fill=trt))+
  theme_bw()+
  geom_signif(comparisons = list(c("sig.DOX", "not_sig.DOX"),
                                 c("sig.EPI","not_sig.EPI"),
                                 c("sig.DNR", "not_sig.DNR"),
                                 c("sig.MTX", "not_sig.MTX")),
                              # step_increase = 0.1,
              map_signif_level = FALSE,
              test = "wilcox.test")+
  ggtitle("ALL dist 24 hours")+
  scale_fill_manual(values=drug_pal)

Figure 5.C. Example TAD region with 3 cardiotox SNPs

** see image above.

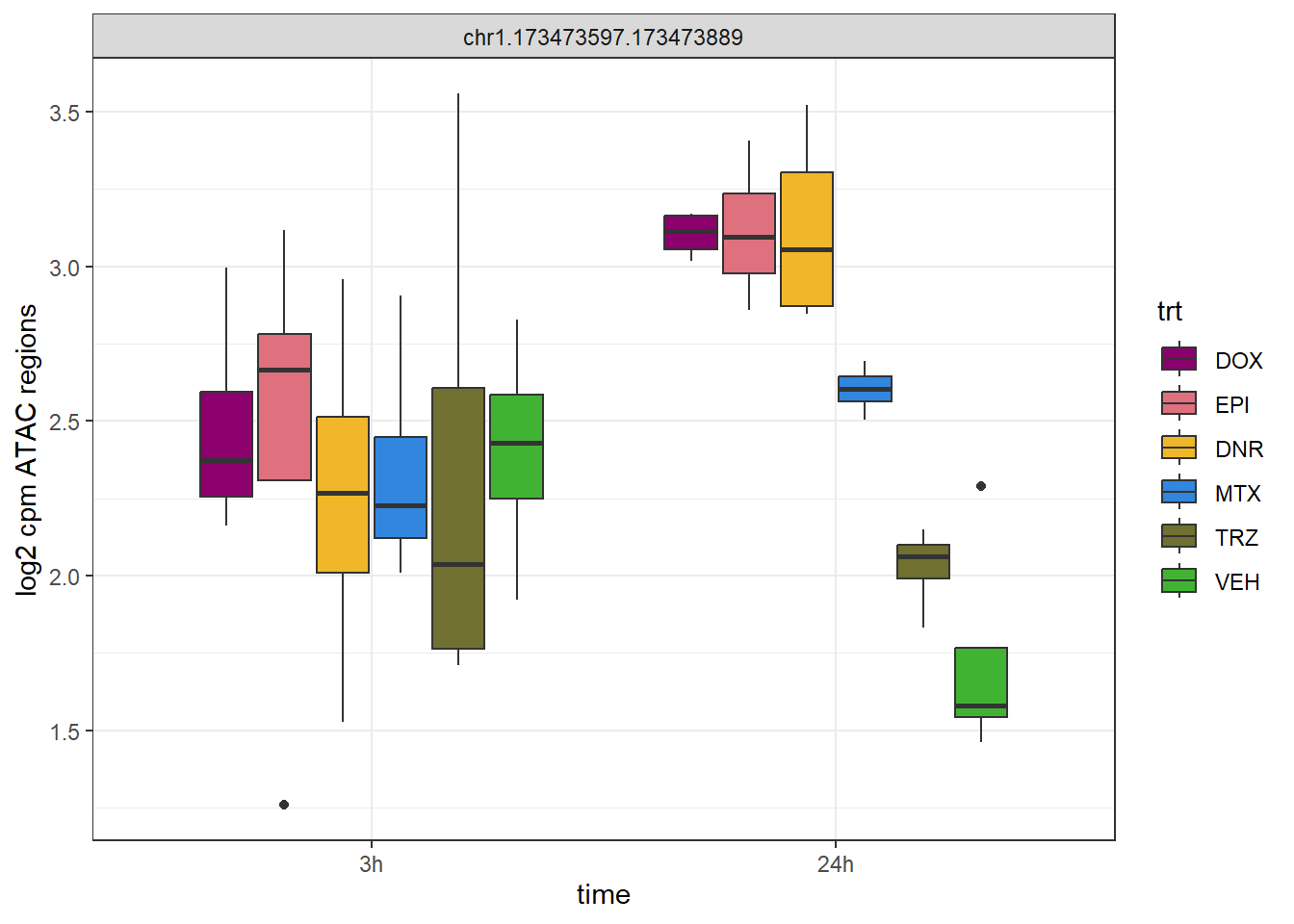

Figure 5.D. Chromatin accessibility within 10 kb of rs10753081

raw_counts <- read_delim("data/Final_four_data/re_analysis/Raw_unfiltered_counts.tsv",delim="\t") %>%
  column_to_rownames("Peakid") %>%
  as.matrix()

lcpm <- cpm(raw_counts, log= TRUE)
  ### for determining the basic cutoffs
filt_raw_counts <- raw_counts[rowMeans(lcpm)> 0,]

filt_raw_counts_noY <- filt_raw_counts[!grepl("chrY",rownames(filt_raw_counts)),]

ATAC_adj.pvals <-all_results %>%
dplyr::select(source,genes,adj.P.Val) %>%
    dplyr::filter(genes %in% SNP_DAR_overlap_direct$Peakid) %>%
    separate(source, into = c("trt", "time")) %>%
    mutate(
    time = paste0(time, "h"),  # convert "3" → "3h"
    trt = factor(trt, levels = c("DOX", "EPI", "DNR", "MTX", "TRZ")),
    group=paste0(trt,"_",time)) %>%
  mutate(group=factor(group,levels = c("DOX_3h", "EPI_3h", "DNR_3h", "MTX_3h", "TRZ_3h", "VEH_3h",
        "DOX_24h", "EPI_24h", "DNR_24h", "MTX_24h", "TRZ_24h", "VEH_24h"))) %>%
  dplyr::rename("Peakid"=genes)
# ATAC_counts_lcpm <- filt_raw_counts_noY %>%
#   cpm(., log = TRUE) %>%
#   as.data.frame() %>%
#   rownames_to_column("Peakid")

filt_raw_counts_noY %>%
  cpm(., log = TRUE) %>%
  as.data.frame() %>%
  rownames_to_column("Peakid") %>%
  dplyr::filter(Peakid =="chr1.173473597.173473889") %>%
  pivot_longer(., cols= !Peakid, names_to = "sample",values_to = "log2cpm") %>%
  separate_wider_delim(, cols=sample, names =c("ind","trt","time"),delim="_",cols_remove = FALSE) %>%
  mutate(
      time = factor(time, levels = c("3h", "24h")),
      trt = factor(trt, levels = c("DOX", "EPI", "DNR", "MTX", "TRZ", "VEH"))
    ) %>%
    ggplot(aes(x = time, y = log2cpm)) +
    geom_boxplot(aes(fill = trt)) +
    scale_fill_manual(values = drug_pal) +
    theme_bw() +
  facet_wrap(~Peakid, scales="free_y")+
    ylab("log2 cpm ATAC regions")

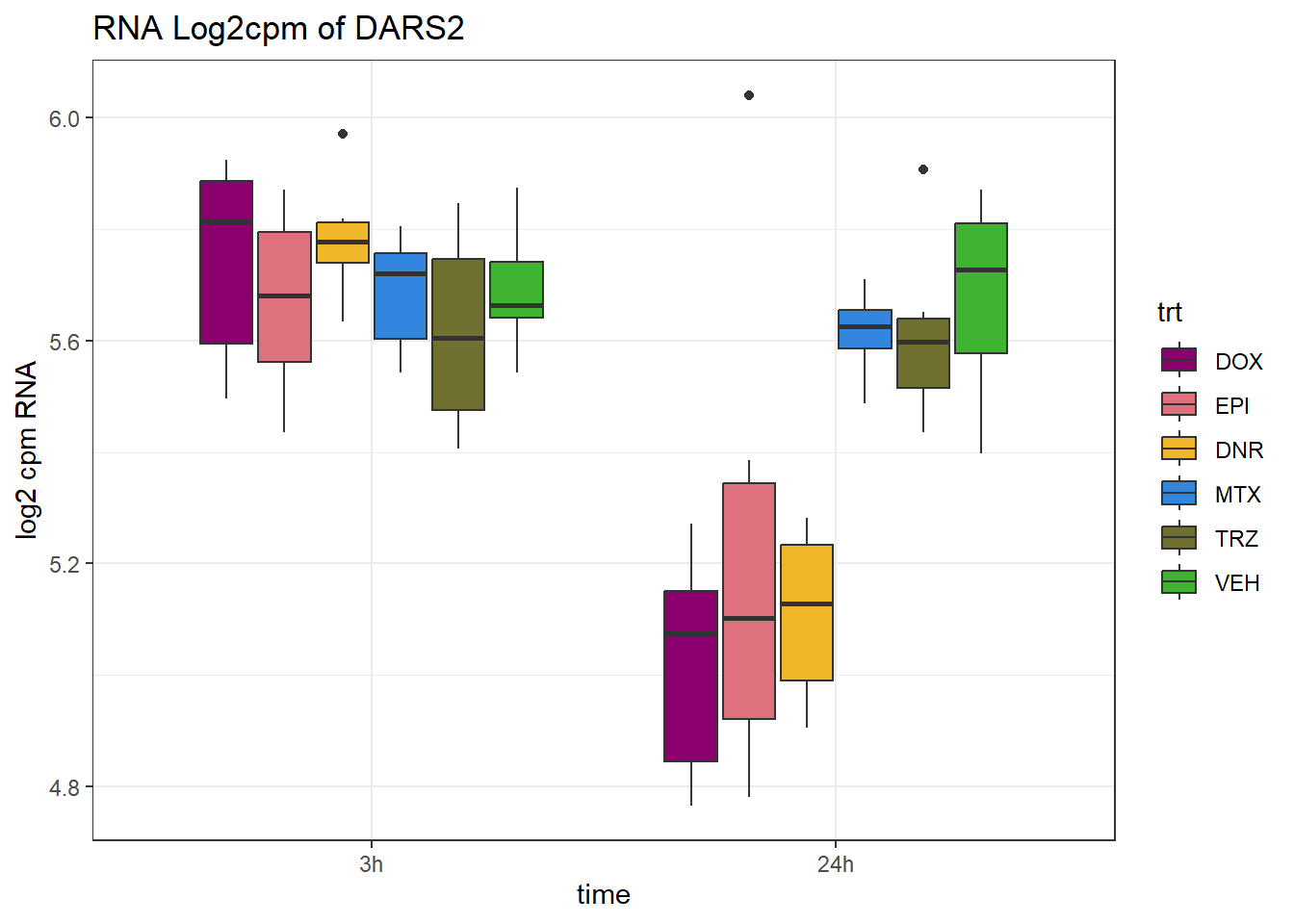

Figure 5.E. Gene expression of rs10753801 heart eGene

drug_pal <- c("#8B006D","#DF707E","#F1B72B", "#3386DD","#707031","#41B333")
RNA_counts <- readRDS("data/other_papers/cpmcount.RDS") %>%
  dplyr::rename_with(.,~gsub(pattern="Da",replacement="DNR",.)) %>%
 dplyr::rename_with(.,~gsub(pattern="Do",replacement="DOX",.)) %>%
  dplyr::rename_with(.,~gsub(pattern="Ep",replacement="EPI",.)) %>%
   dplyr::rename_with(.,~gsub(pattern="Mi",replacement="MTX",.)) %>%
    dplyr::rename_with(.,~gsub(pattern="Tr",replacement="TRZ",.)) %>%
       dplyr::rename_with(.,~gsub(pattern="Ve",replacement="VEH",.)) %>%
  rownames_to_column("ENTREZID")
RNA_counts %>%
  dplyr::filter(ENTREZID =="55157") %>%
  pivot_longer(cols = !ENTREZID, names_to = "sample", values_to = "counts") %>%
  separate("sample", into = c("trt","ind","time")) %>%
  mutate(time=factor(time, levels = c("3h","24h"))) %>%
  mutate(trt=factor(trt, levels= c("DOX","EPI","DNR","MTX","TRZ","VEH"))) %>%
  ggplot(., aes (x = time, y=counts))+
  geom_boxplot(aes(fill=trt))+
  # facet_wrap(~SYMBOL, scales="free_y")+
    scale_fill_manual(values = drug_pal)+
  ggtitle("RNA Log2cpm of DARS2")+
  theme_bw()+
  ylab("log2 cpm RNA")

Figure 5.F. Chromatin accessibility and TOP2B binding at the TSS of DARS2
