📌 GTEX Tissue specific correlation heatmap
📌 Load Required Libraries
library(ggplot2)
library(dplyr)Warning: package 'dplyr' was built under R version 4.3.2library(tidyr)Warning: package 'tidyr' was built under R version 4.3.3library(org.Hs.eg.db)Warning: package 'AnnotationDbi' was built under R version 4.3.2Warning: package 'BiocGenerics' was built under R version 4.3.1Warning: package 'Biobase' was built under R version 4.3.1Warning: package 'IRanges' was built under R version 4.3.1Warning: package 'S4Vectors' was built under R version 4.3.2library(clusterProfiler)Warning: package 'clusterProfiler' was built under R version 4.3.3library(biomaRt)Warning: package 'biomaRt' was built under R version 4.3.2library(pheatmap)Warning: package 'pheatmap' was built under R version 4.3.1📌 Load Data
# Read the CSV file into R
# 📁 Step 0: Load Count Data
file_path <- "data/count.csv"
df <- read.csv(file_path, check.names = FALSE)
# Remove 'x' from column headers
colnames(df) <- gsub("^x", "", colnames(df))
# View the updated dataframe
head(df)
# View updated column names
colnames(df)
# Step 1: Calculate IPSC_CM
# Select columns with 'VEH' in their names
veh_columns <- grep("VEH", colnames(df), value = TRUE)
# Calculate the average logCPM across VEH samples
df$IPSC_CM <- rowMeans(df[, veh_columns], na.rm = TRUE)
# Create a new dataframe with ENTREZID, SYMBOL, and IPSC_CM
veh_avg_df <- df[, c("Entrez_ID","IPSC_CM")]
library(biomaRt)
# Step 2: Read the Tissue_Gtex dataset
Tissue_Gtex <- read.csv("C:/Work/Postdoc_UTMB/CX-5461 Project/RNA Seq/Alignment/Concatenation/Data Integration/Human Heart Genes/Tissue specificity/Tissue_Gtex.csv")
# Step 3: Convert Ensembl IDs to Entrez IDs using biomaRt
mart <- useMart("ensembl", dataset = "hsapiens_gene_ensembl")
# Extract Entrez IDs for the Ensembl IDs in the gene.id column
gene_ids <- Tissue_Gtex$gene.id
conversion <- getBM(
attributes = c("ensembl_gene_id", "entrezgene_id"),
filters = "ensembl_gene_id",
values = gene_ids,
mart = mart
)
# Merge Entrez IDs back into Tissue_Gtex
Tissue_Gtex <- merge(Tissue_Gtex, conversion, by.x = "gene.id", by.y = "ensembl_gene_id", all.x = TRUE)
# Rename the column for consistency
colnames(Tissue_Gtex)[colnames(Tissue_Gtex) == "entrezgene_id"] <- "Entrez_ID"
# Step 4: Read the veh_avg_df dataframe
veh_avg_df <- df[, c("Entrez_ID", "IPSC_CM")]
# Step 5: Merge veh_avg_df with Tissue_Gtex by Entrez_ID
# Ensure column types match
veh_avg_df$Entrez_ID <- as.character(veh_avg_df$Entrez_ID)
Tissue_Gtex$Entrez_ID <- as.character(Tissue_Gtex$Entrez_ID)
# Perform the merge
merged_df <- merge(veh_avg_df, Tissue_Gtex, by = "Entrez_ID", all.x = TRUE)
# Step 6: Remove rows with NA values
cleaned_df <- na.omit(merged_df)
# Step 7: Verify and analyze the cleaned dataframe
head(cleaned_df)
# Step 5: Correlation and heatmap analysis
# Filter relevant tissue columns
tissue_cols <- colnames(cleaned_df)[which(colnames(cleaned_df) %in% c(
"IPSC_CM", "Adrenal.Gland", "Spleen", "Heart...Atrial", "Pancreas","Artery","Breast",
"small.Intestine","Colon","Nerve...Tibial","Esophagus","Muscle...Skeletal",
"Thyroid","Heart..Ventricle", "Stomach", "Uterus","Vagina", "Skin", "Ovary", "Liver", "Lung", "Brain", "Pituitary", "Testis",
"Prostate", "Salivary.Gland"))]
data_subset <- cleaned_df[, tissue_cols]
# Compute Pearson and Spearman correlations
pearson_corr <- cor(data_subset, method = "pearson", use = "complete.obs")
spearman_corr <- cor(data_subset, method = "spearman", use = "complete.obs")
# Reorder tissues by highest correlation with IPSC_CM
order_pearson <- order(pearson_corr["IPSC_CM", ], decreasing = TRUE)
order_spearman <- order(spearman_corr["IPSC_CM", ], decreasing = TRUE)
pearson_corr <- pearson_corr[order_pearson, order_pearson]
spearman_corr <- spearman_corr[order_spearman, order_spearman]
# Plot Pearson correlation heatmap

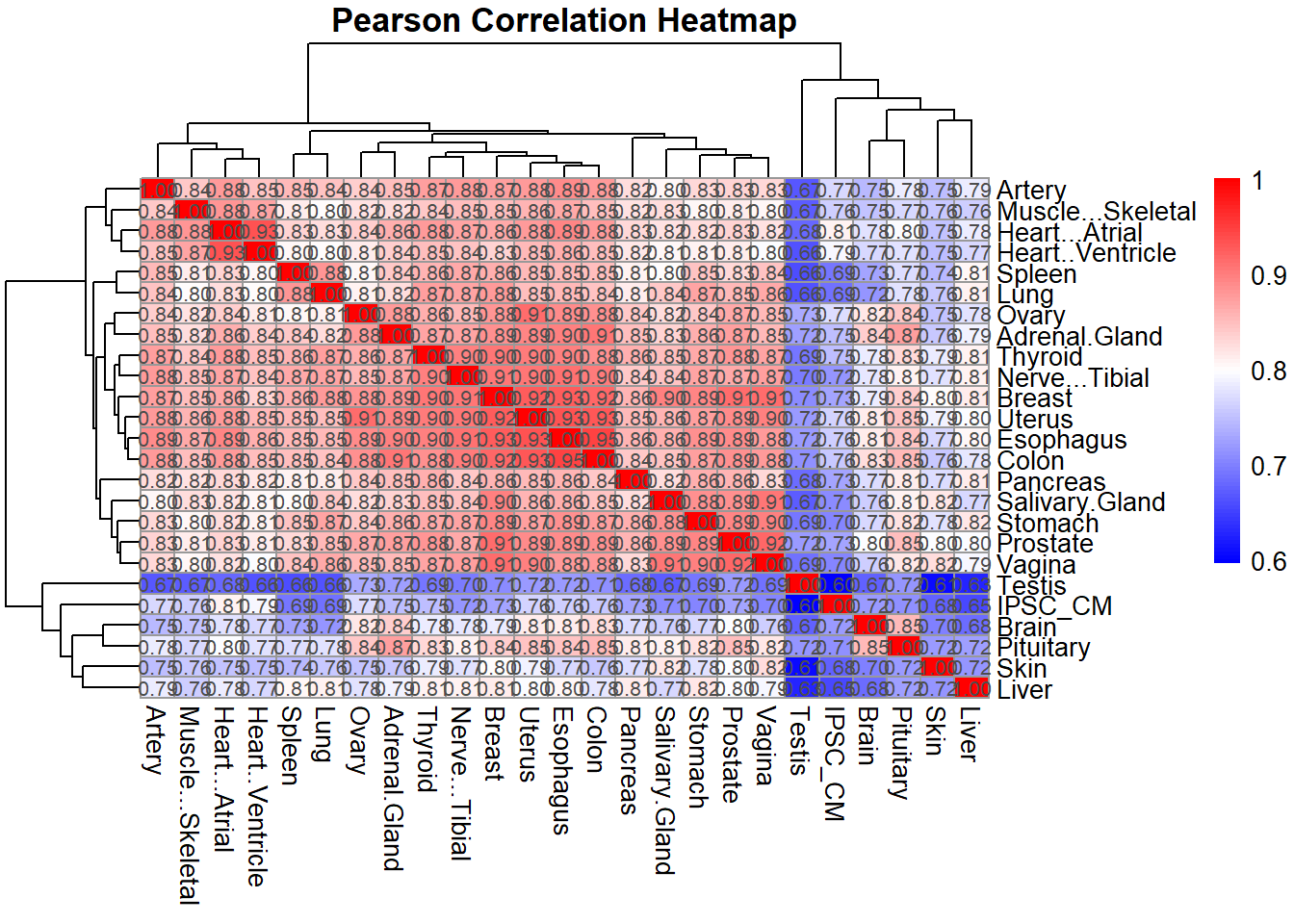

pheatmap(pearson_corr,
cluster_rows = TRUE,
cluster_cols = TRUE,
main = "Pearson Correlation Heatmap",
color = colorRampPalette(c("blue", "white", "red"))(100),
display_numbers = TRUE,
number_format = "%.2f",
fontsize_number = 8)
# Optional: Plot Spearman correlation heatmap

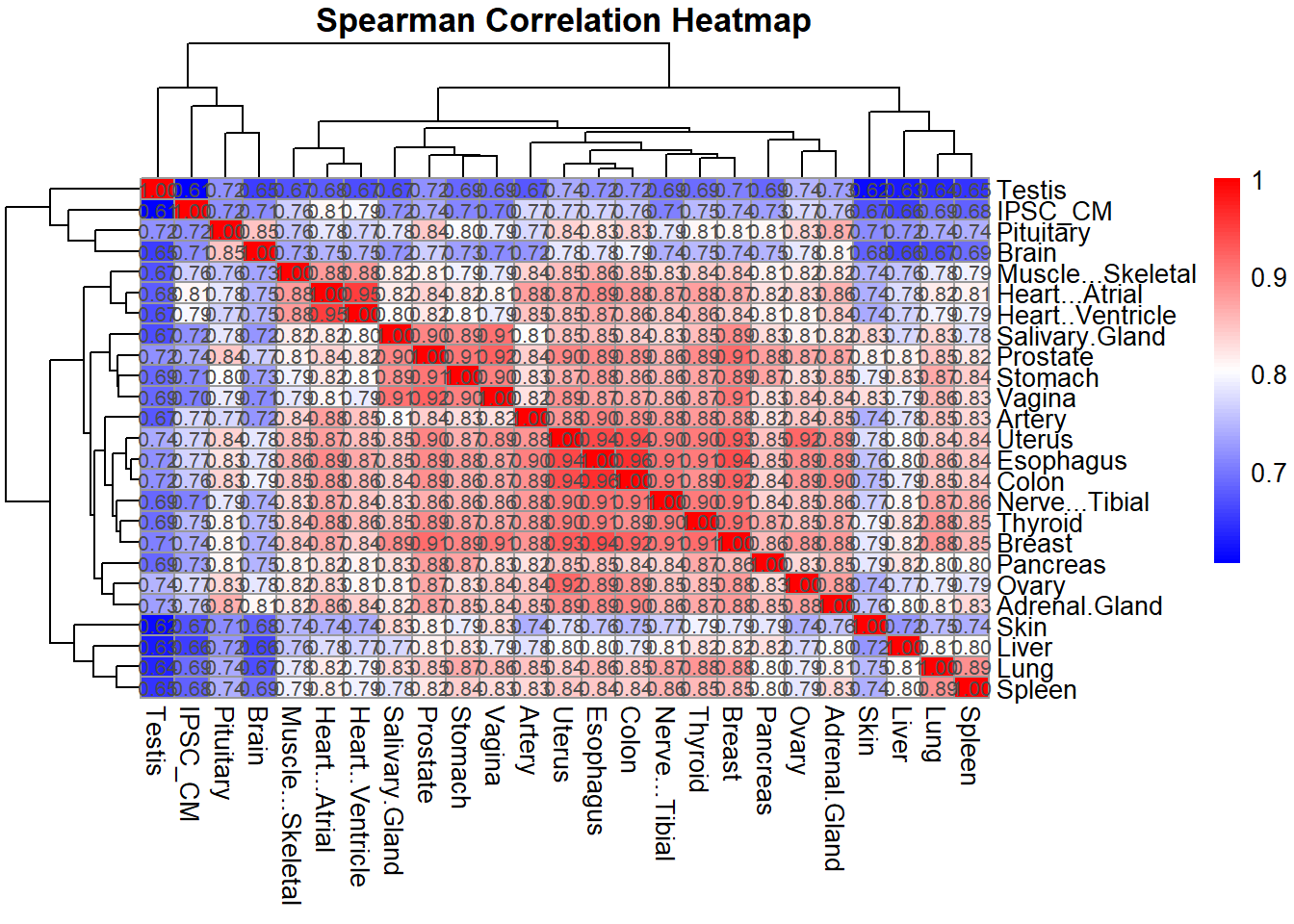

pheatmap(spearman_corr,
cluster_rows = TRUE,
cluster_cols = TRUE,
main = "Spearman Correlation Heatmap",
color = colorRampPalette(c("blue", "white", "red"))(100),
display_numbers = TRUE,
number_format = "%.2f",
fontsize_number = 8)
📌 Correlation Plot
# Load libraries
library(ComplexHeatmap)Warning: package 'ComplexHeatmap' was built under R version 4.3.1library(circlize)Warning: package 'circlize' was built under R version 4.3.3library(grid)
# Compute correlation (Pearson)
cor_values <- cor(data_subset, method = "pearson", use = "complete.obs")
# Extract and sort correlations with median-based IPSC_CM
ipsc_cm_corr <- cor_values["IPSC_CM", ]
ipsc_cm_corr_sorted <- sort(ipsc_cm_corr, decreasing = TRUE)
# Create matrix for heatmap
corr_matrix <- matrix(ipsc_cm_corr_sorted, ncol = 1)
rownames(corr_matrix) <- names(ipsc_cm_corr_sorted)
colnames(corr_matrix) <- "IPSC_CM"
# Define color function: blue → white → red
col_fun <- colorRamp2(
c(0.5, 0.75, 1.0),
c("blue", "white", "red")
)
# Plot heatmap

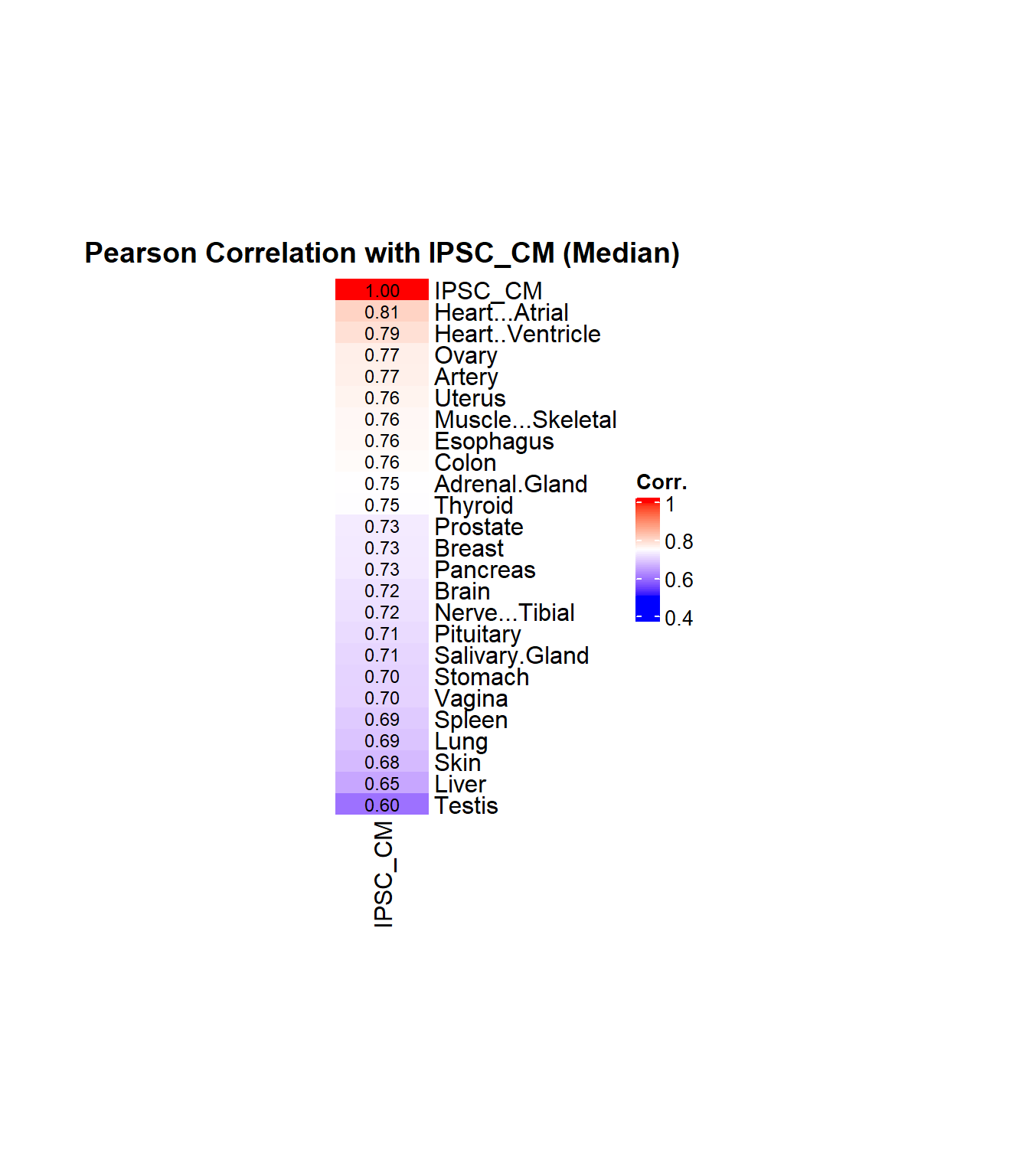

Heatmap(
corr_matrix,
name = "Corr.",
col = col_fun,
cluster_rows = FALSE,
cluster_columns = FALSE,
show_column_names = TRUE,
show_row_names = TRUE,
row_names_side = "right",
column_names_side = "bottom",
column_title = "Pearson Correlation with IPSC_CM (Median)",
column_title_gp = gpar(fontsize = 14, fontface = "bold"),
heatmap_width = unit(5, "cm"),
heatmap_height = unit(12, "cm"),
cell_fun = function(j, i, x, y, width, height, fill) {
grid.text(sprintf("%.2f", corr_matrix[i, j]), x, y, gp = gpar(fontsize = 9))
}
)
📌Generate Boxplots for Veh_Cardiac Genes
library(ggplot2)
library(dplyr)
library(tidyr)
library(org.Hs.eg.db)
library(clusterProfiler)
## **📌 Define Genes of Interest**
cardiac_genes <- c("ACTN2", "CALR", "MYBPC3", "MYH6", "MYH7", "NKX2-5",
"MYL2", "RYR2", "SCN5A", "TNNI3", "TNNT2", "TTN")
# Load feature count matrix
boxplot1 <- read.csv("data/Feature_count_Matrix_Log2CPM_filtered.csv") %>% as.data.frame()
# Ensure column names are cleaned
colnames(boxplot1) <- trimws(gsub("^X", "", colnames(boxplot1)))
# 📌 Prepare data
cardiac_data <- boxplot1 %>%
filter(SYMBOL %in% cardiac_genes) %>%
pivot_longer(cols = -c(ENTREZID, SYMBOL, GENENAME), names_to = "Sample", values_to = "log2CPM") %>%
mutate(
Indv = case_when(
grepl("75.1", Sample) ~ "1",
grepl("78.1", Sample) ~ "2",
grepl("87.1", Sample) ~ "3",
grepl("17.3", Sample) ~ "4",
grepl("84.1", Sample) ~ "5",
grepl("90.1", Sample) ~ "6",
TRUE ~ NA_character_
),
Drug = case_when(
grepl("CX.5461", Sample) ~ "CX",
grepl("DOX", Sample) ~ "DOX",
grepl("VEH", Sample) ~ "VEH",
TRUE ~ NA_character_
),
Conc. = case_when(
grepl("_0.1_", Sample) ~ "0.1",
grepl("_0.5_", Sample) ~ "0.5",
TRUE ~ NA_character_
),
Timepoint = case_when(
grepl("_3$", Sample) ~ "3",
grepl("_24$", Sample) ~ "24",
grepl("_48$", Sample) ~ "48",
TRUE ~ NA_character_
)
) %>%
filter(Drug == "VEH")
# 📌 Determine gene order from highest to lowest mean log2CPM
gene_order <- cardiac_data %>%
group_by(SYMBOL) %>%
summarise(mean_log2CPM = mean(log2CPM, na.rm = TRUE)) %>%
arrange(desc(mean_log2CPM)) %>%
pull(SYMBOL)
# 📌 Apply ordering
cardiac_data$SYMBOL <- factor(cardiac_data$SYMBOL, levels = gene_order)
cardiac_data$Timepoint <- factor(cardiac_data$Timepoint, levels = c("3", "24", "48"))
cardiac_data$Conc. <- factor(cardiac_data$Conc., levels = c("0.1", "0.5"))
# 📌 Plot

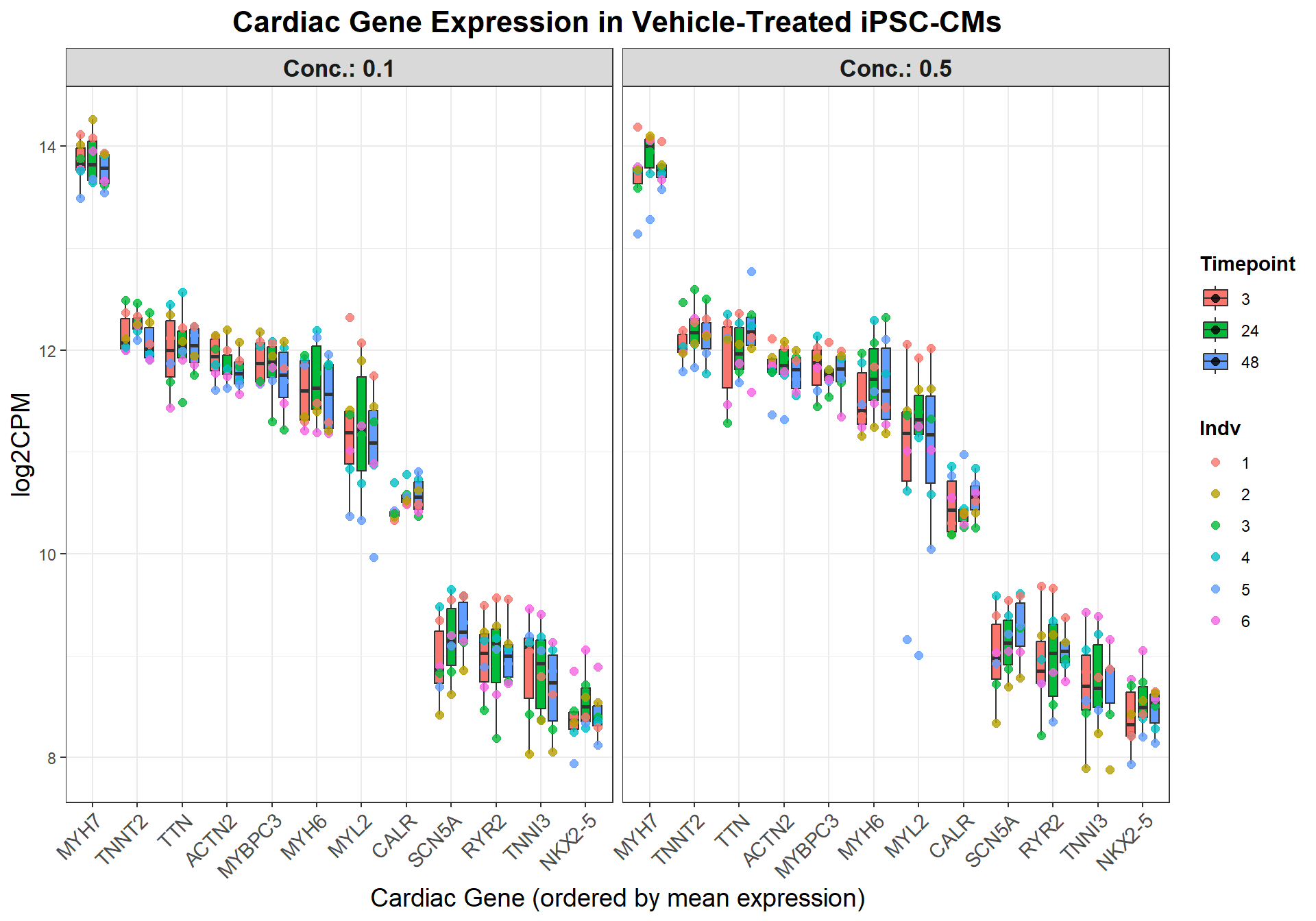

ggplot(cardiac_data, aes(x = SYMBOL, y = log2CPM, fill = Timepoint)) +
geom_boxplot(
aes(group = interaction(SYMBOL, Timepoint)),
position = position_dodge(width = 0.8),
outlier.shape = NA,
width = 0.6
) +
geom_point(
aes(color = Indv, group = interaction(SYMBOL, Timepoint)),
position = position_dodge(width = 0.8),
size = 2,
alpha = 0.8
) +
facet_grid(. ~ Conc., labeller = label_both) +
labs(
title = "Cardiac Gene Expression in Vehicle-Treated iPSC-CMs",
x = "Cardiac Gene (ordered by mean expression)",
y = "log2CPM"
) +
theme_bw() +
theme(
plot.title = element_text(size = 16, face = "bold", hjust = 0.5),
axis.text.x = element_text(angle = 45, hjust = 1, size = 11),
axis.title = element_text(size = 14),
strip.text = element_text(size = 13, face = "bold"),
legend.title = element_text(face = "bold"),
legend.position = "right"
)
sessionInfo()R version 4.3.0 (2023-04-21 ucrt)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 11 x64 (build 26100)
Matrix products: default
locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8
time zone: America/Chicago
tzcode source: internal
attached base packages:
[1] grid stats4 stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] circlize_0.4.16 ComplexHeatmap_2.18.0 pheatmap_1.0.12
[4] biomaRt_2.58.2 clusterProfiler_4.10.1 org.Hs.eg.db_3.18.0
[7] AnnotationDbi_1.64.1 IRanges_2.36.0 S4Vectors_0.40.2
[10] Biobase_2.62.0 BiocGenerics_0.48.1 tidyr_1.3.1
[13] dplyr_1.1.4 ggplot2_3.5.2
loaded via a namespace (and not attached):
[1] RColorBrewer_1.1-3 shape_1.4.6.1 rstudioapi_0.17.1
[4] jsonlite_2.0.0 magrittr_2.0.3 magick_2.8.6
[7] farver_2.1.2 rmarkdown_2.29 GlobalOptions_0.1.2
[10] fs_1.6.3 zlibbioc_1.48.2 vctrs_0.6.5
[13] Cairo_1.6-2 memoise_2.0.1 RCurl_1.98-1.17
[16] ggtree_3.10.1 htmltools_0.5.8.1 progress_1.2.3
[19] curl_6.2.2 gridGraphics_0.5-1 sass_0.4.10
[22] bslib_0.9.0 plyr_1.8.9 cachem_1.1.0
[25] igraph_2.1.4 iterators_1.0.14 lifecycle_1.0.4
[28] pkgconfig_2.0.3 Matrix_1.6-1.1 R6_2.6.1
[31] fastmap_1.2.0 gson_0.1.0 clue_0.3-66
[34] GenomeInfoDbData_1.2.11 digest_0.6.34 aplot_0.2.5
[37] enrichplot_1.22.0 colorspace_2.1-0 patchwork_1.3.0
[40] rprojroot_2.0.4 RSQLite_2.3.9 labeling_0.4.3
[43] filelock_1.0.3 httr_1.4.7 polyclip_1.10-7
[46] compiler_4.3.0 doParallel_1.0.17 bit64_4.6.0-1
[49] withr_3.0.2 BiocParallel_1.36.0 viridis_0.6.5
[52] DBI_1.2.3 ggforce_0.4.2 MASS_7.3-60
[55] rappdirs_0.3.3 rjson_0.2.23 HDO.db_0.99.1
[58] tools_4.3.0 ape_5.8-1 scatterpie_0.2.4
[61] httpuv_1.6.15 glue_1.7.0 nlme_3.1-168
[64] GOSemSim_2.28.1 promises_1.3.2 shadowtext_0.1.4
[67] cluster_2.1.8.1 reshape2_1.4.4 fgsea_1.28.0
[70] generics_0.1.3 gtable_0.3.6 data.table_1.17.0
[73] hms_1.1.3 xml2_1.3.8 tidygraph_1.3.1
[76] XVector_0.42.0 foreach_1.5.2 ggrepel_0.9.6
[79] pillar_1.10.2 stringr_1.5.1 yulab.utils_0.2.0
[82] later_1.3.2 splines_4.3.0 tweenr_2.0.3
[85] BiocFileCache_2.10.2 treeio_1.26.0 lattice_0.22-7
[88] bit_4.6.0 tidyselect_1.2.1 GO.db_3.18.0
[91] Biostrings_2.70.3 knitr_1.50 git2r_0.36.2
[94] gridExtra_2.3 xfun_0.52 graphlayouts_1.2.2
[97] matrixStats_1.5.0 stringi_1.8.3 workflowr_1.7.1
[100] lazyeval_0.2.2 ggfun_0.1.8 yaml_2.3.10
[103] evaluate_1.0.3 codetools_0.2-20 ggraph_2.2.1
[106] tibble_3.2.1 qvalue_2.34.0 ggplotify_0.1.2
[109] cli_3.6.1 munsell_0.5.1 jquerylib_0.1.4
[112] Rcpp_1.0.12 GenomeInfoDb_1.38.8 dbplyr_2.5.0
[115] png_0.1-8 XML_3.99-0.18 parallel_4.3.0
[118] blob_1.2.4 prettyunits_1.2.0 DOSE_3.28.2
[121] bitops_1.0-9 viridisLite_0.4.2 tidytree_0.4.6
[124] scales_1.3.0 purrr_1.0.4 crayon_1.5.3
[127] GetoptLong_1.0.5 rlang_1.1.3 cowplot_1.1.3
[130] fastmatch_1.1-6 KEGGREST_1.42.0
