📌 Differential Gene Expression Analysis
📌 Load Required Libraries
# Load necessary packages
library(edgeR)Warning: package 'edgeR' was built under R version 4.3.2Warning: package 'limma' was built under R version 4.3.1library(limma)
library(data.table)Warning: package 'data.table' was built under R version 4.3.3library(tidyverse)Warning: package 'tidyverse' was built under R version 4.3.2Warning: package 'tidyr' was built under R version 4.3.3Warning: package 'readr' was built under R version 4.3.3Warning: package 'purrr' was built under R version 4.3.3Warning: package 'dplyr' was built under R version 4.3.2Warning: package 'stringr' was built under R version 4.3.2Warning: package 'lubridate' was built under R version 4.3.3library(ggplot2)
library(dplyr)

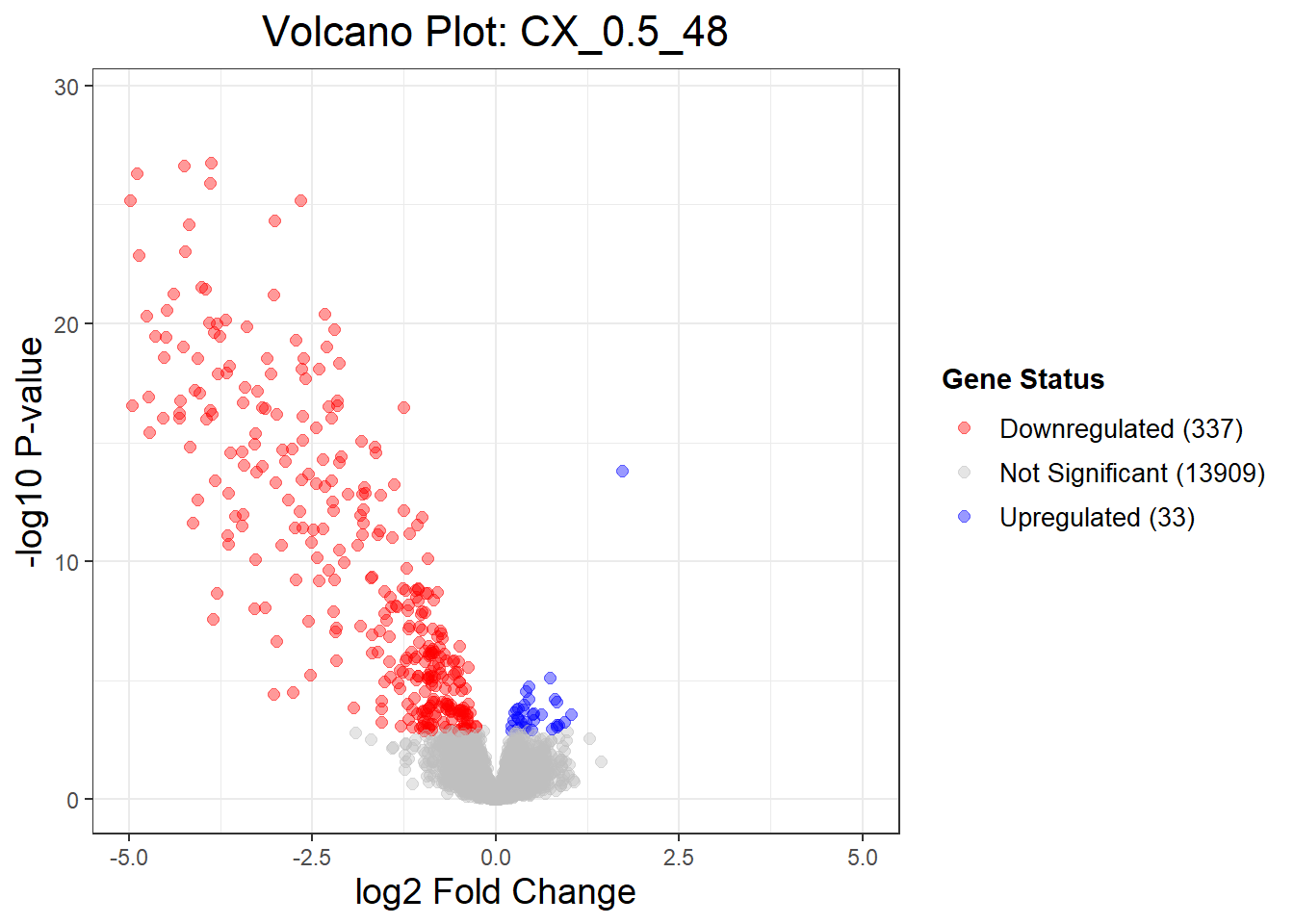

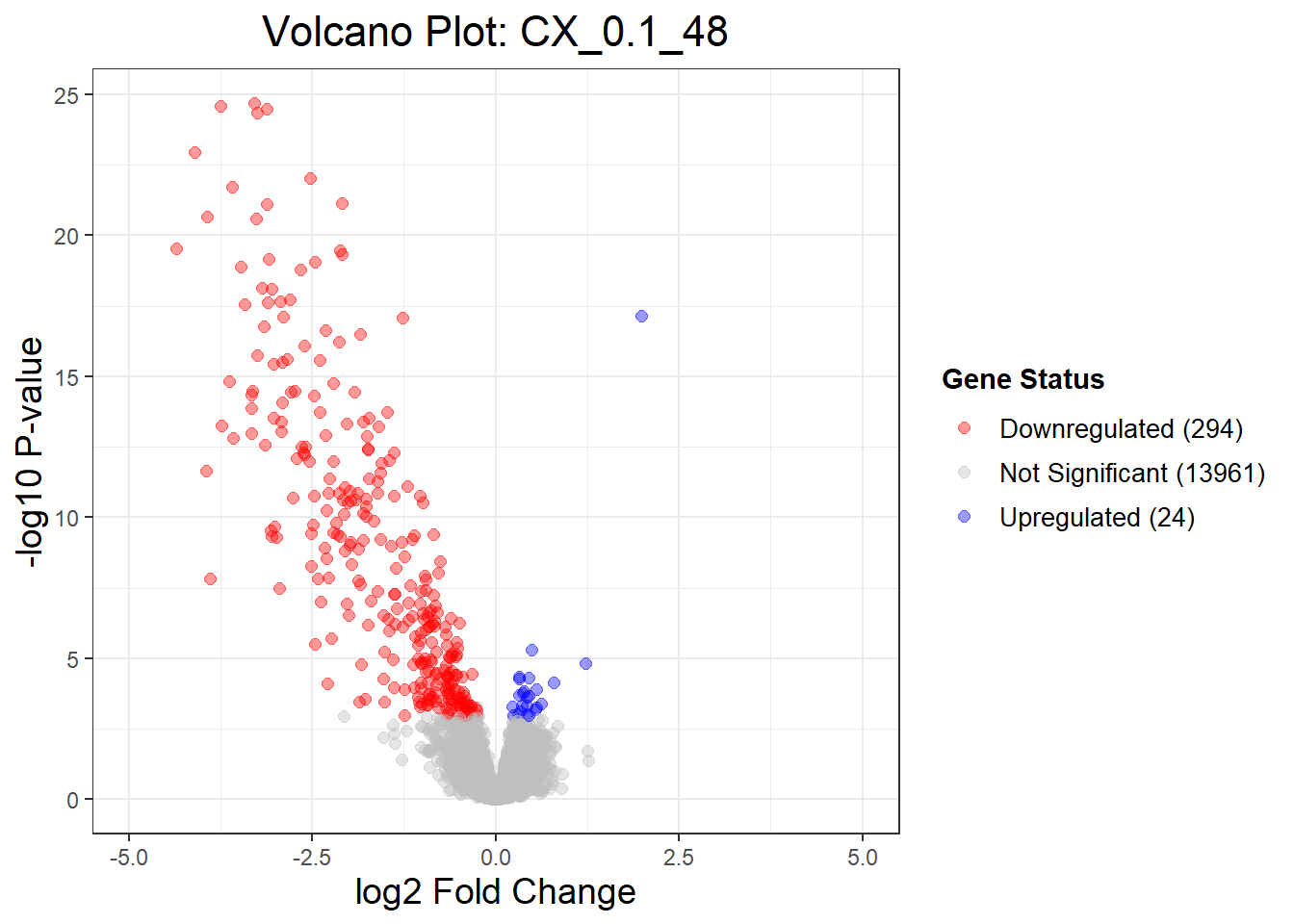

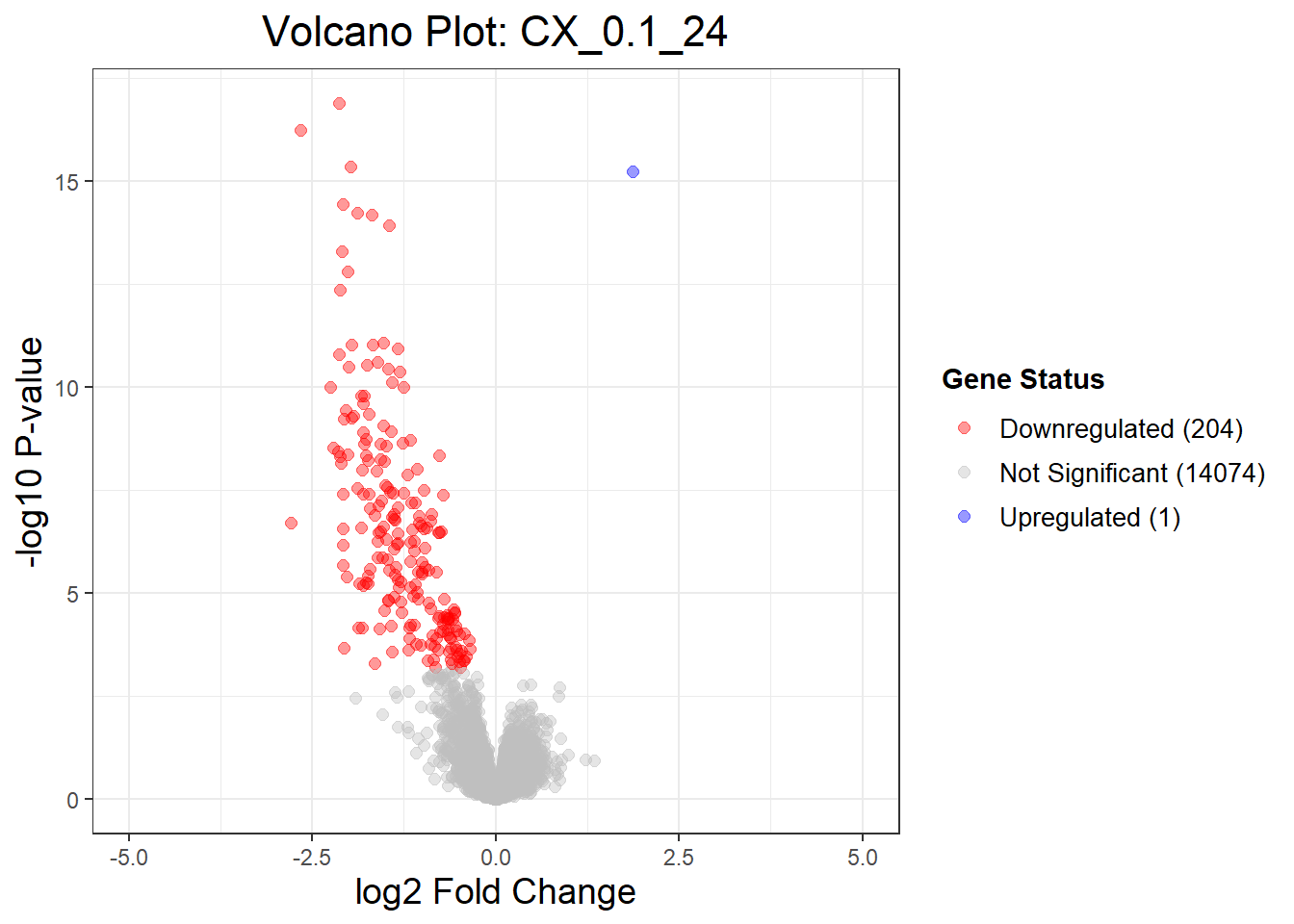

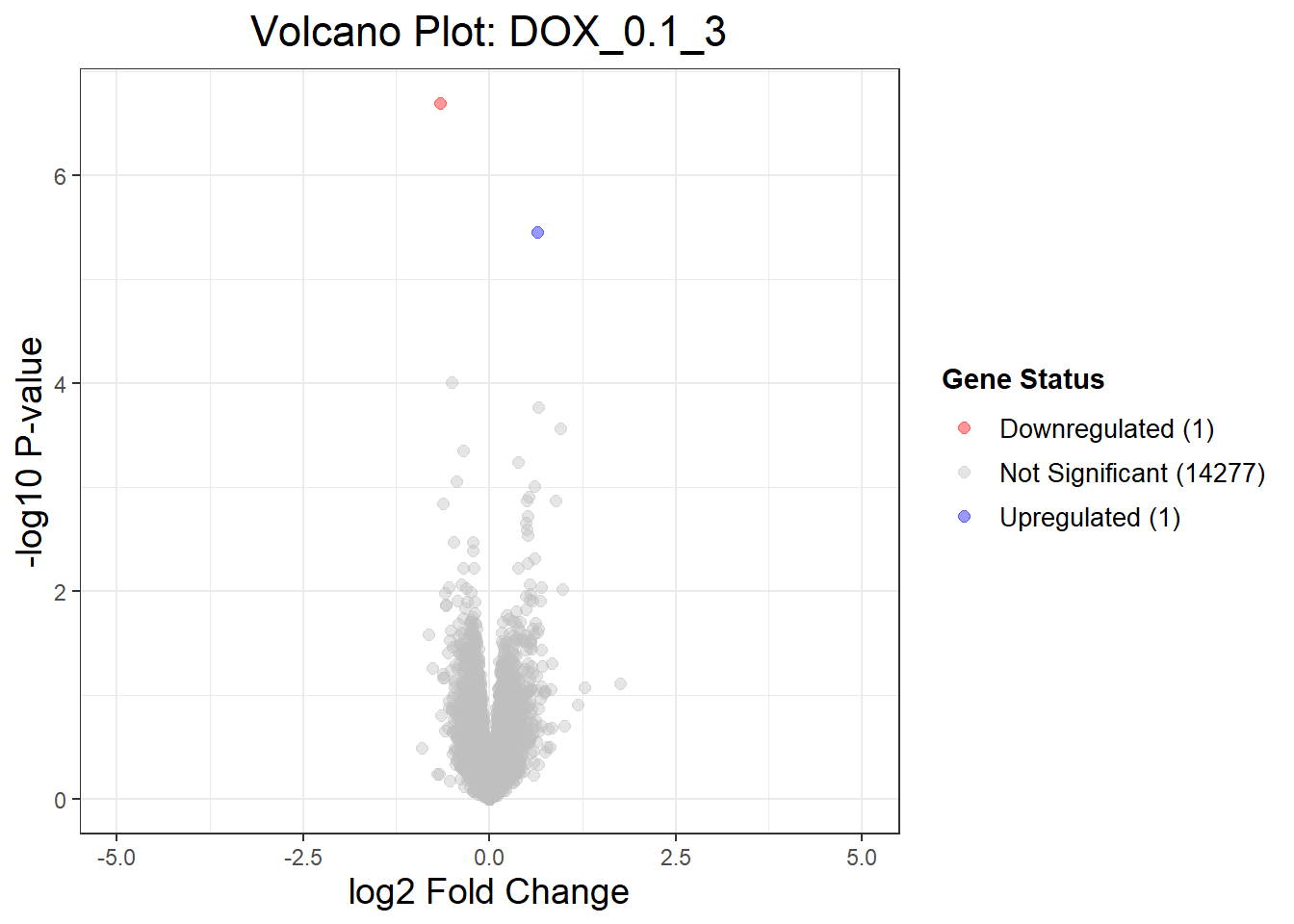

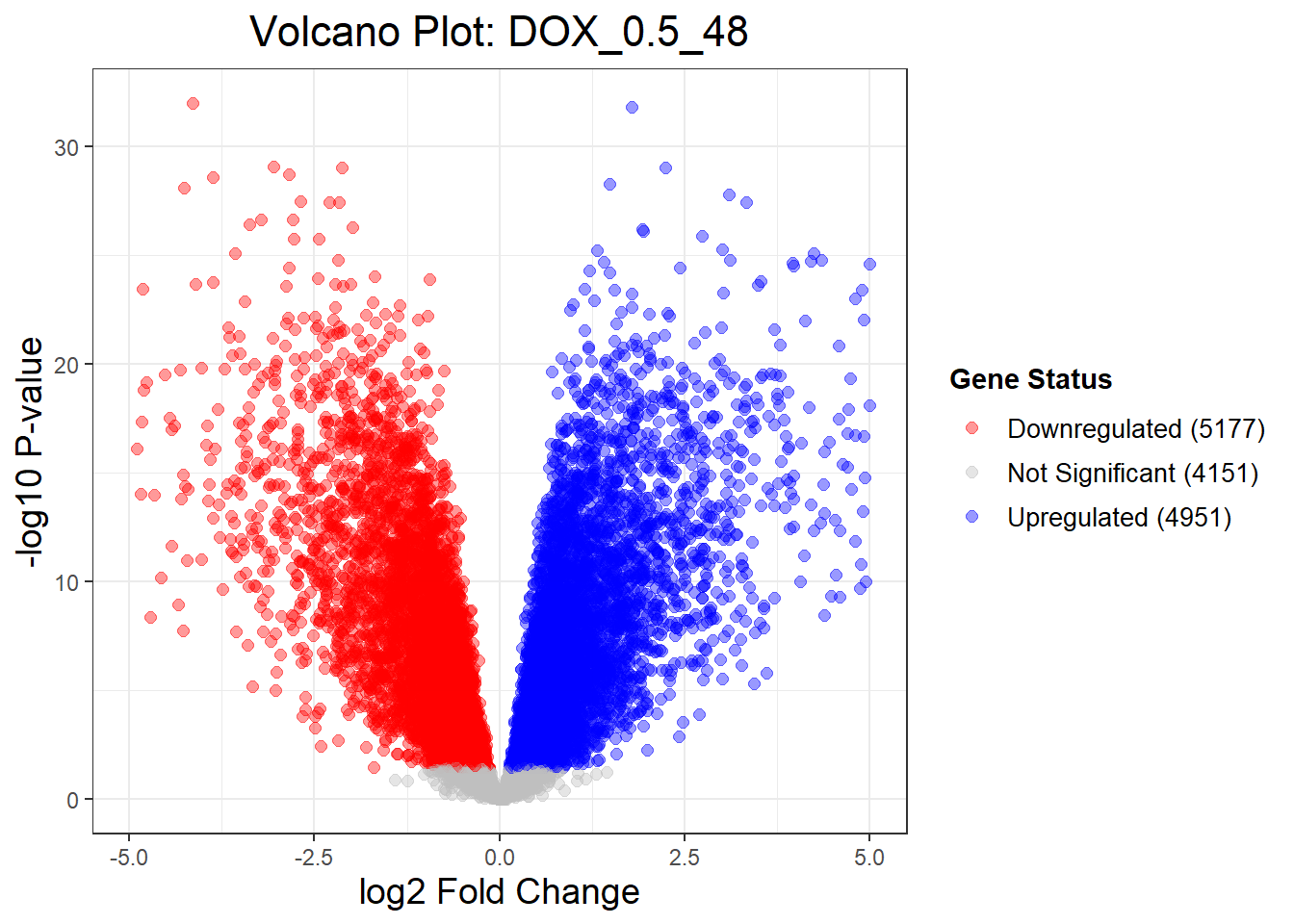

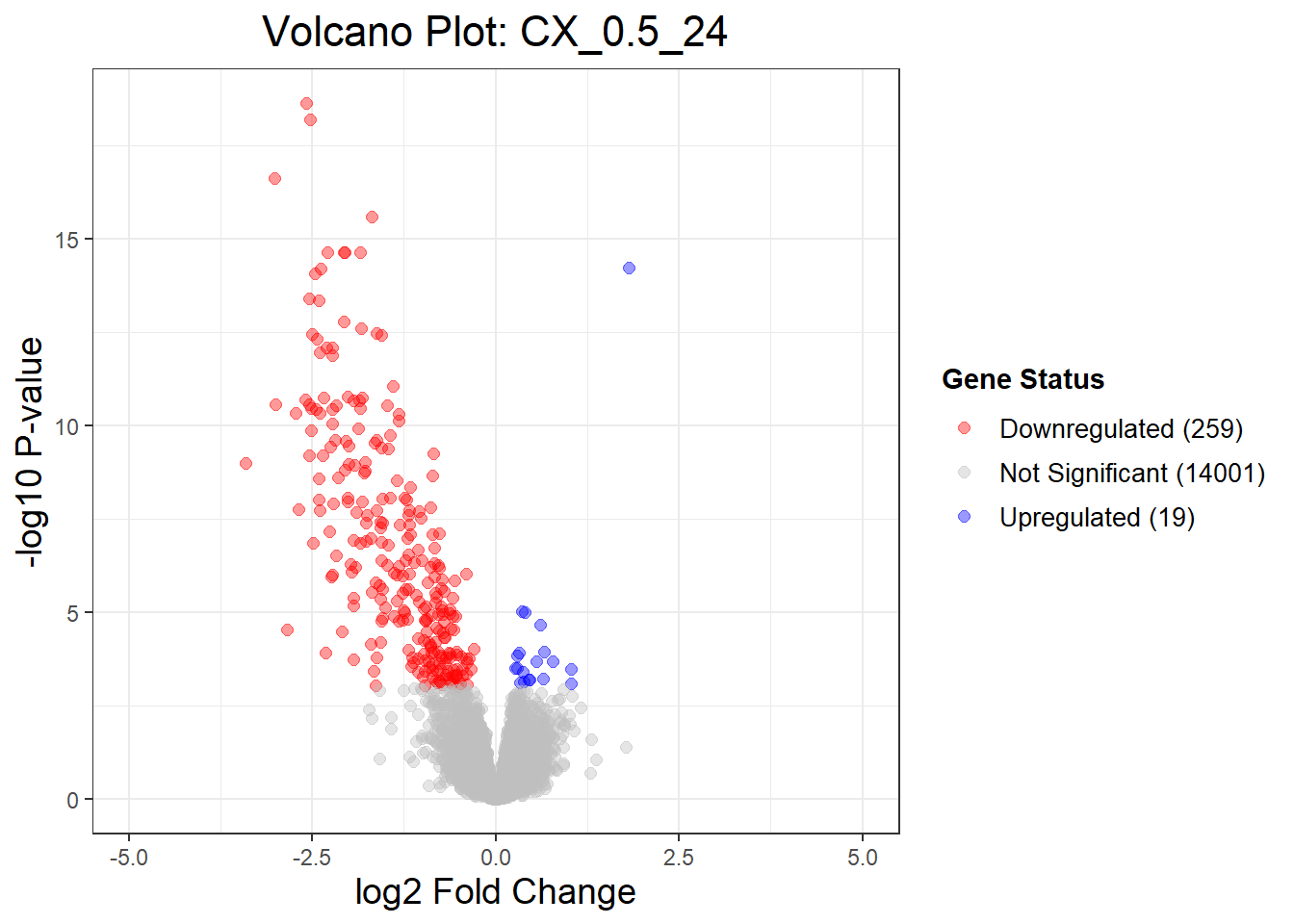

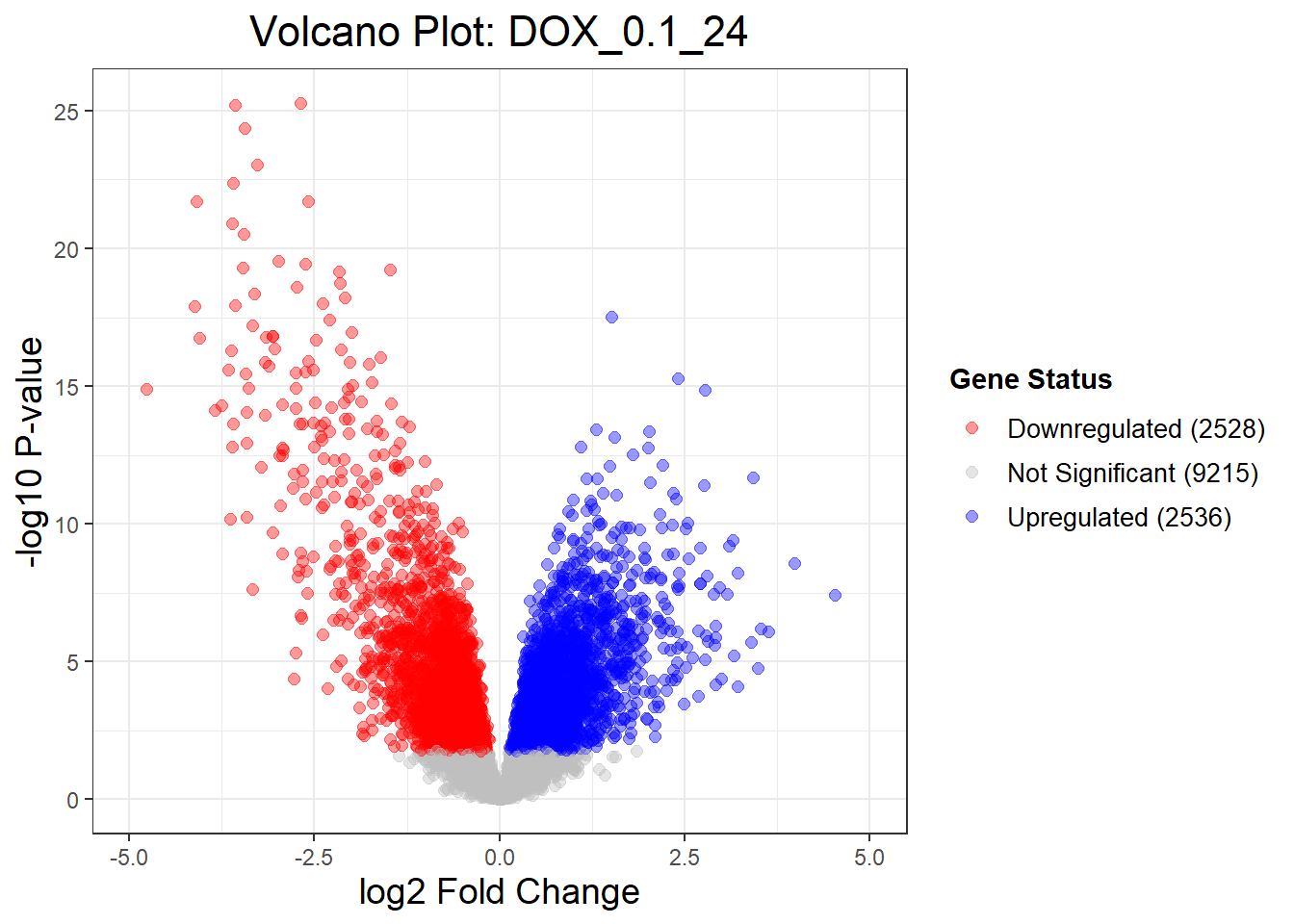

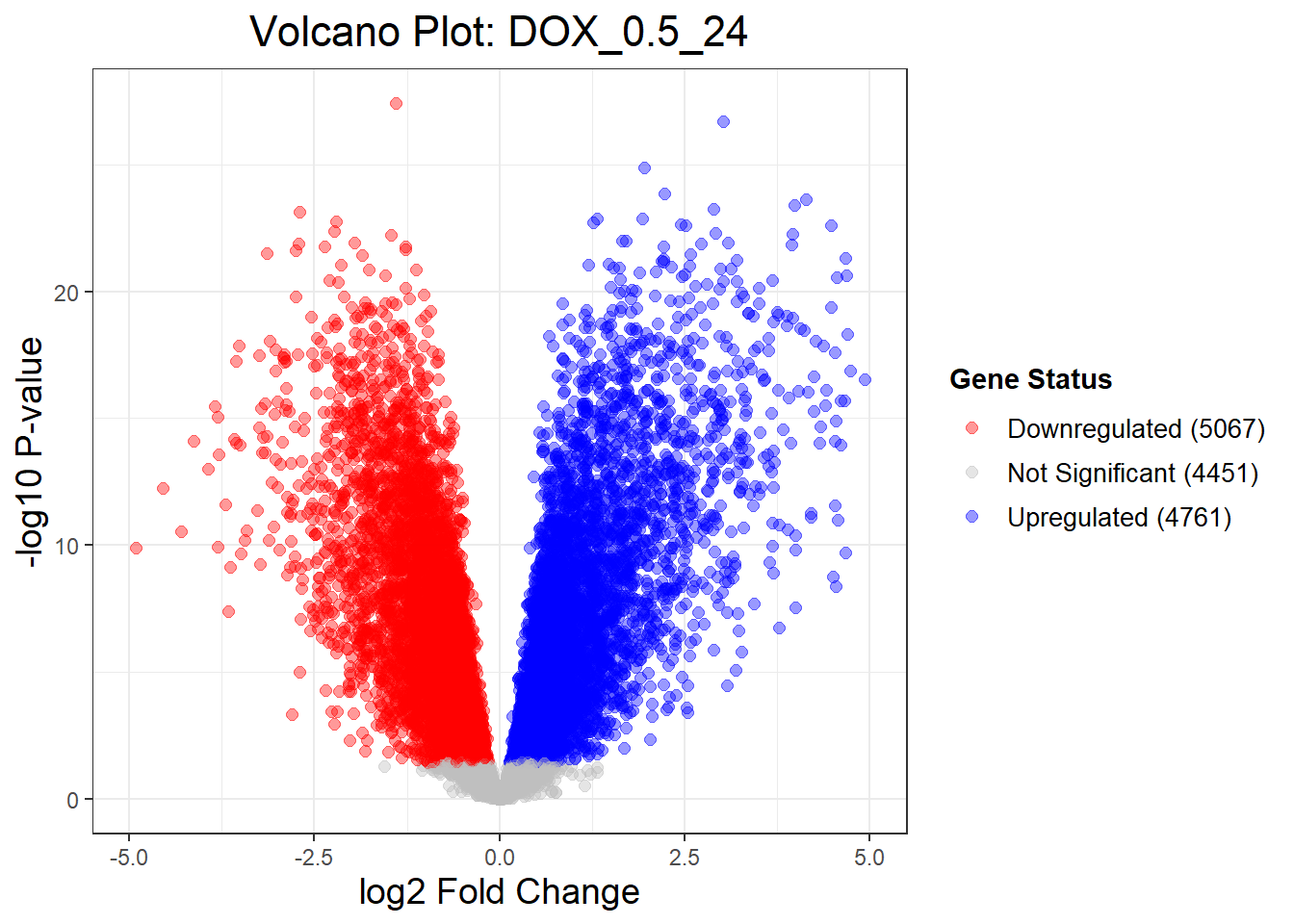

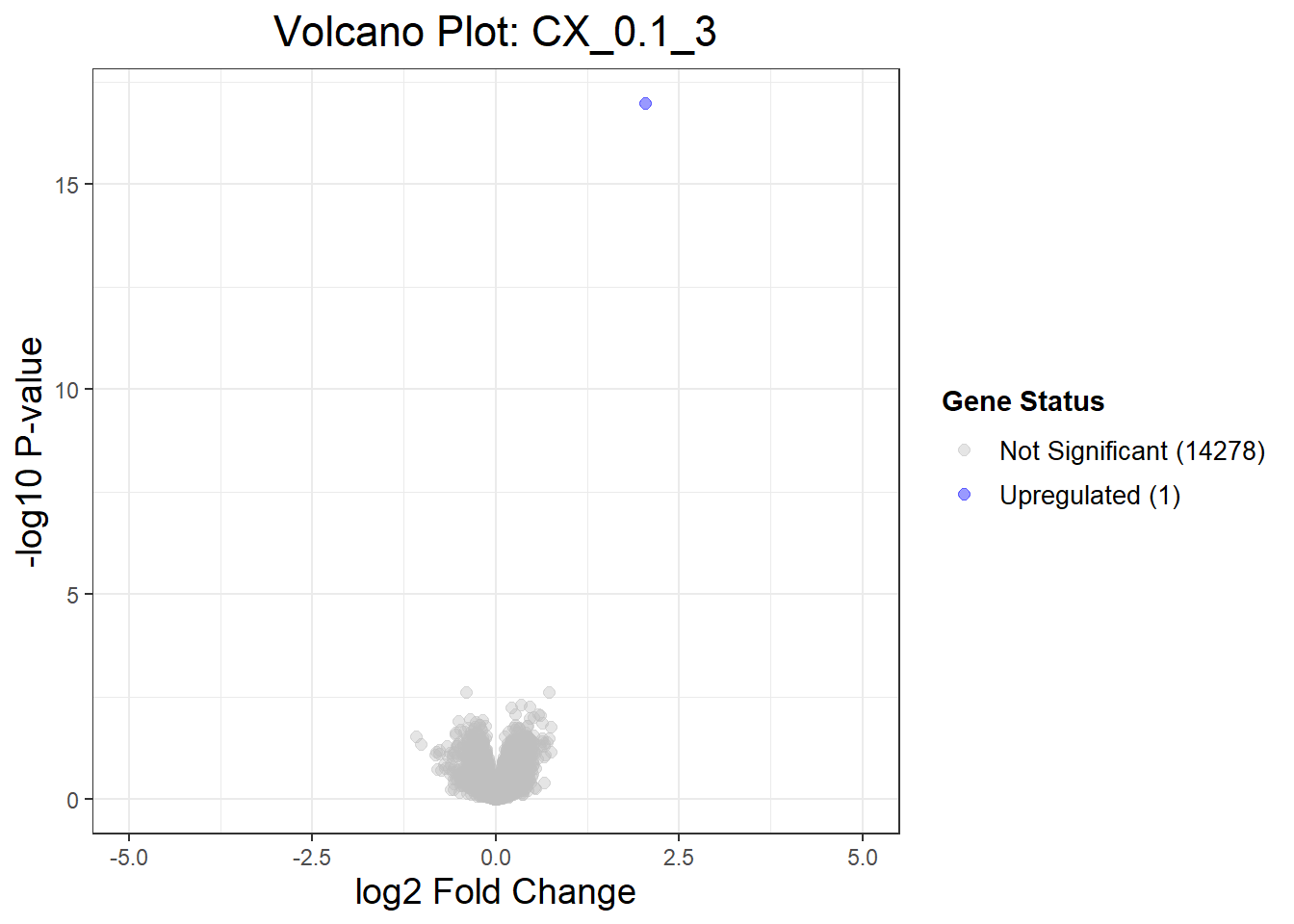

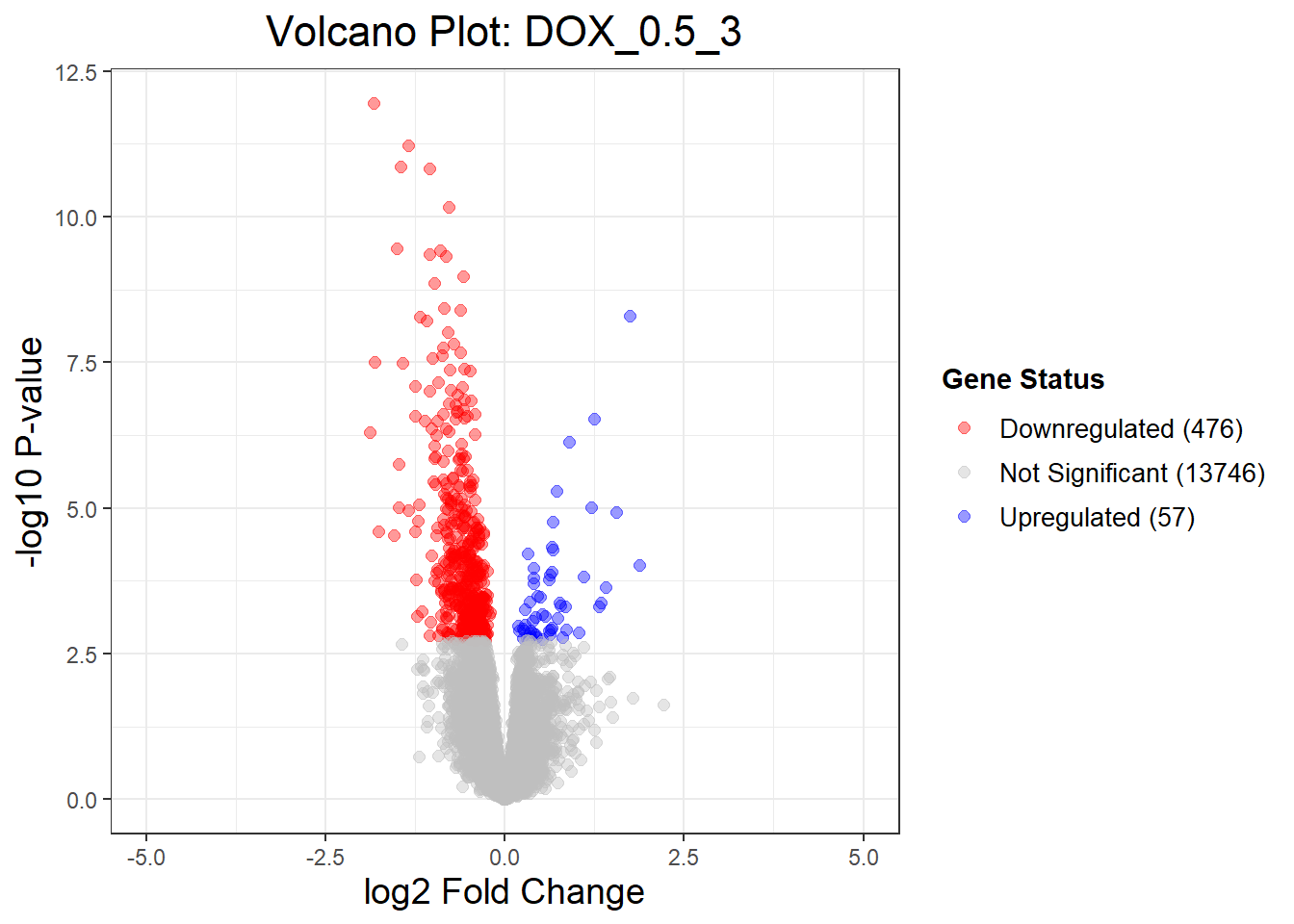

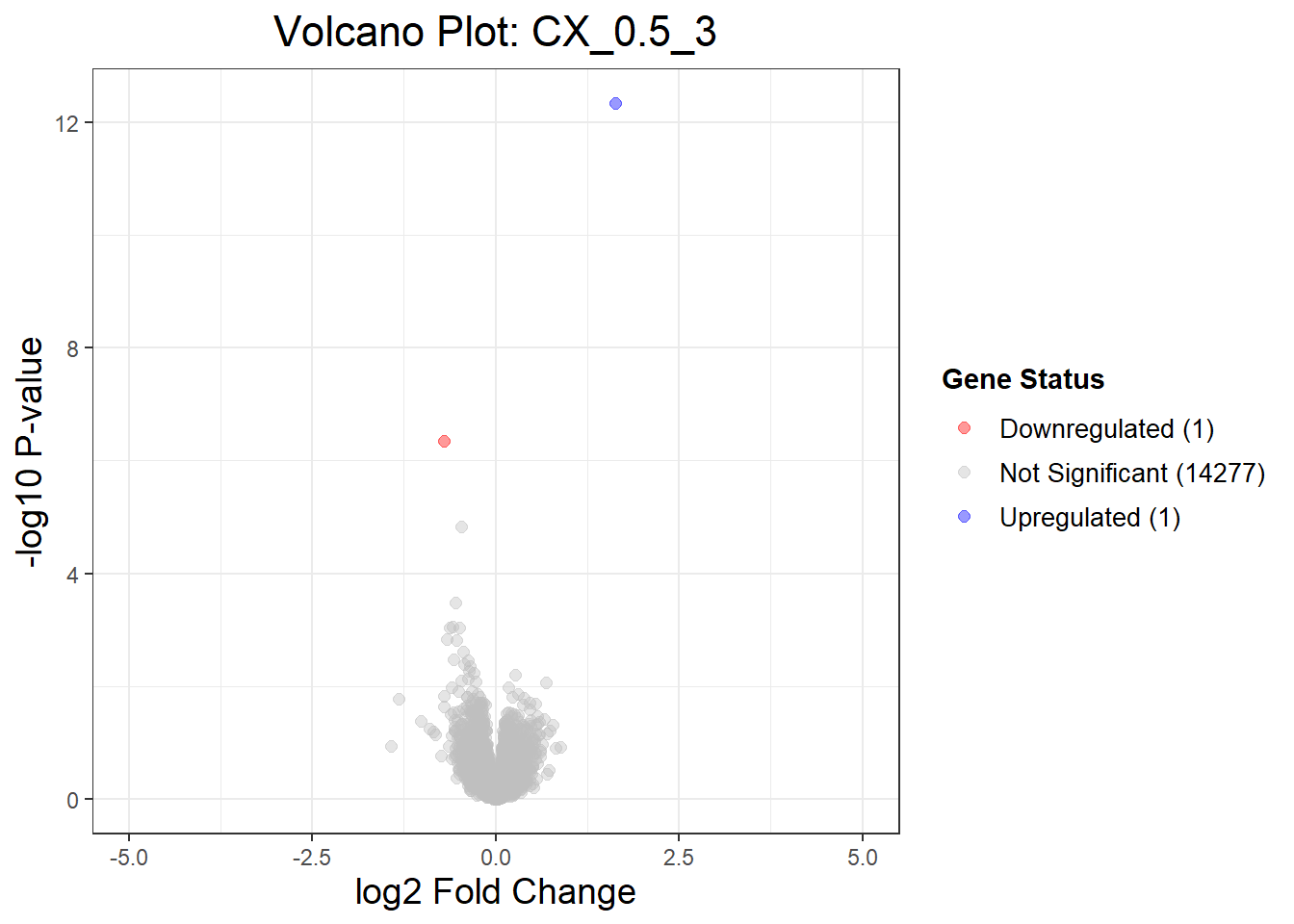

library(scales)Warning: package 'scales' was built under R version 4.3.2library(biomaRt)Warning: package 'biomaRt' was built under R version 4.3.2library(Homo.sapiens)Warning: package 'AnnotationDbi' was built under R version 4.3.2Warning: package 'BiocGenerics' was built under R version 4.3.1Warning: package 'Biobase' was built under R version 4.3.1Warning: package 'IRanges' was built under R version 4.3.1Warning: package 'S4Vectors' was built under R version 4.3.2Warning: package 'OrganismDbi' was built under R version 4.3.1Warning: package 'GenomicFeatures' was built under R version 4.3.3Warning: package 'GenomeInfoDb' was built under R version 4.3.3Warning: package 'GenomicRanges' was built under R version 4.3.1📌 Volcano Plots for Differential Expression Analysis
library(ggplot2)
# Function to generate volcano plot with counts in legend
generate_volcano_plot <- function(toptable, title) {
# Annotate significance
toptable$Significance <- "Not Significant"
toptable$Significance[toptable$logFC > 0 & toptable$adj.P.Val < 0.05] <- "Upregulated"
toptable$Significance[toptable$logFC < 0 & toptable$adj.P.Val < 0.05] <- "Downregulated"
# Count per category
count_table <- table(toptable$Significance)
up_count <- count_table["Upregulated"]
down_count <- count_table["Downregulated"]
ns_count <- count_table["Not Significant"]
# Handle missing counts
if (is.na(up_count)) up_count <- 0
if (is.na(down_count)) down_count <- 0
if (is.na(ns_count)) ns_count <- 0
# Labels with counts
custom_labels <- c(
paste0("Downregulated (", down_count, ")"),
paste0("Not Significant (", ns_count, ")"),
paste0("Upregulated (", up_count, ")")
)
names(custom_labels) <- c("Downregulated", "Not Significant", "Upregulated")
# Plot
ggplot(toptable, aes(x = logFC, y = -log10(P.Value), color = Significance)) +
geom_point(alpha = 0.4, size = 2) +
scale_color_manual(
values = c(
"Downregulated" = "red",
"Upregulated" = "blue",
"Not Significant" = "gray"
),
labels = custom_labels
) +
xlim(-5, 5) +
labs(
title = title,
x = "log2 Fold Change",
y = "-log10 P-value",
color = "Gene Status"
) +
theme_bw() +
theme(
legend.position = "right",
plot.title = element_text(size = rel(1.5), hjust = 0.5),
axis.title = element_text(size = rel(1.25)),
legend.title = element_text(size = 11, face = "bold"),
legend.text = element_text(size = 10)
)
}
# Load all Toptable CSV files
deg_files <- list.files("data/DEGs/", pattern = "^Toptable_.*\\.csv$", full.names = TRUE)
# Loop through files and show plots
for (file in deg_files) {
df <- read.csv(file)
plot_title <- gsub("^Toptable_|\\.csv$", "", basename(file))
p <- generate_volcano_plot(df, paste("Volcano Plot:", plot_title))
print(p)
}
Warning: Removed 3 rows containing missing values or values outside the scale range
(`geom_point()`).
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_point()`).
Warning: Removed 34 rows containing missing values or values outside the scale range
(`geom_point()`).
Warning: Removed 28 rows containing missing values or values outside the scale range
(`geom_point()`).
Warning: Removed 24 rows containing missing values or values outside the scale range
(`geom_point()`).
